25SVP Series

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 56 ΜF, 25 V, RADIAL CAN - SMD, 0.028 OHM

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	ESR (Equivalent Series Resistance)	Tolerance	Lifetime @ Temp.	Mounting Type	Voltage - Rated	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Height - Seated (Max)

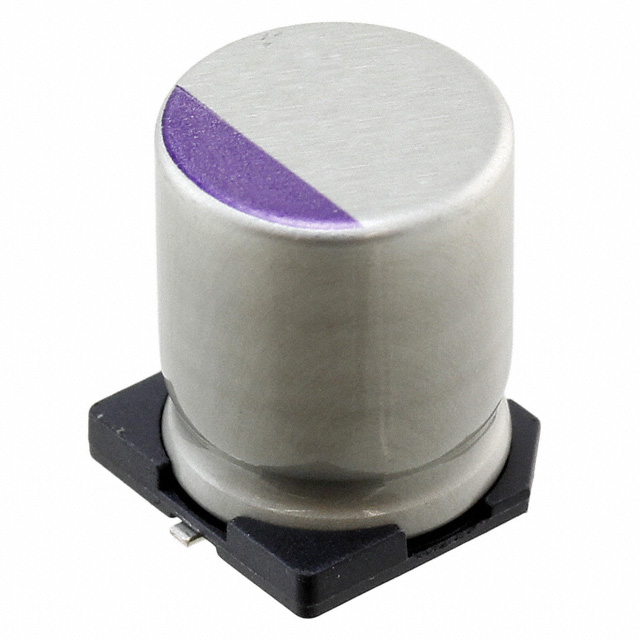

Panasonic Electronic Components 25SVP56M	0.394 in	10 mm	Polymer	0.406 "	0.406 in	10.3 mm	10.3 mm	0.5 in	12.7 mm	General Purpose	28 mOhm	20 %	2000 Hrs	Surface Mount	25 VDC	Radial Can - SMD	-55 C	105 ░C	56 µF

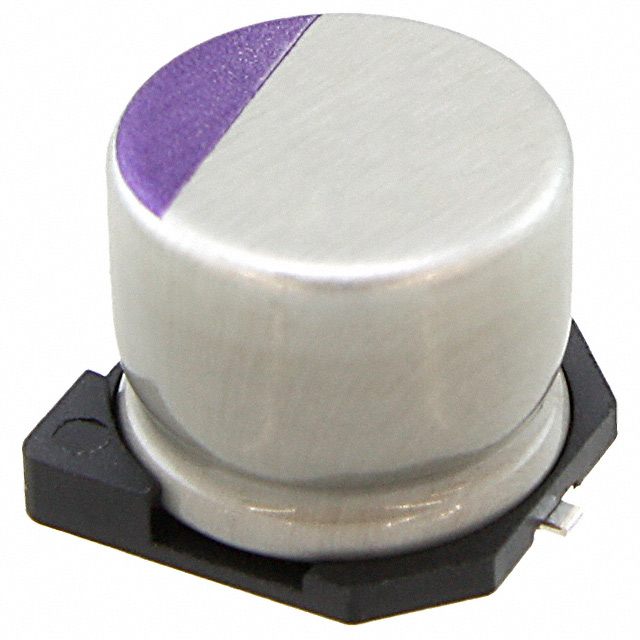

Panasonic Electronic Components 25SVP10M	0.315 in	8 mm	Polymer	0.327 in	0.327 in	8.3 mm	8.3 mm	0.276 in	7 mm	General Purpose	120 mOhm	20 %	2000 Hrs	Surface Mount	25 VDC	Radial Can - SMD	-55 C	105 ░C	10 µF
Panasonic Electronic Components 25SVP22M	0.394 in	10 mm	Polymer	0.406 "	0.406 in	10.3 mm	10.3 mm	0.315 in	8 mm	General Purpose	50 mOhms	20 %	2000 Hrs	Surface Mount	25 VDC	Radial Can - SMD	-55 C	105 ░C	22 µF
Panasonic Electronic Components 25SVP33M	0.315 in	8 mm	Polymer	0.327 in	0.327 in	8.3 mm	8.3 mm	0.472 in		General Purpose	30 mOhms	20 %	2000 Hrs	Surface Mount	25 VDC	Radial Can - SMD	-55 C	105 ░C	33 ÁF	12 mm
Panasonic Electronic Components 25SVP6R8M	0.248 "	6.3 mm	Polymer	0.26 in	0.26 in	6.6 mm	6.6 mm	0.236 "		General Purpose	80 mOhm	20 %	2000 Hrs	Surface Mount	25 VDC	Radial Can - SMD	-55 C	105 ░C	6.8 µF	6 mm
