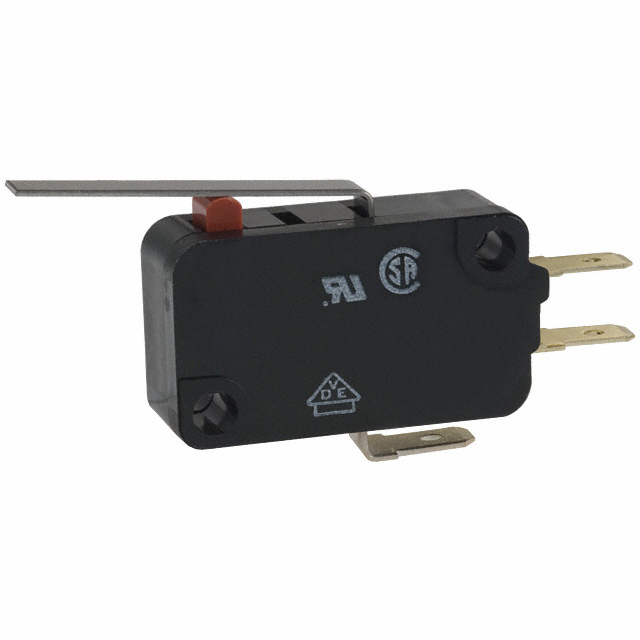

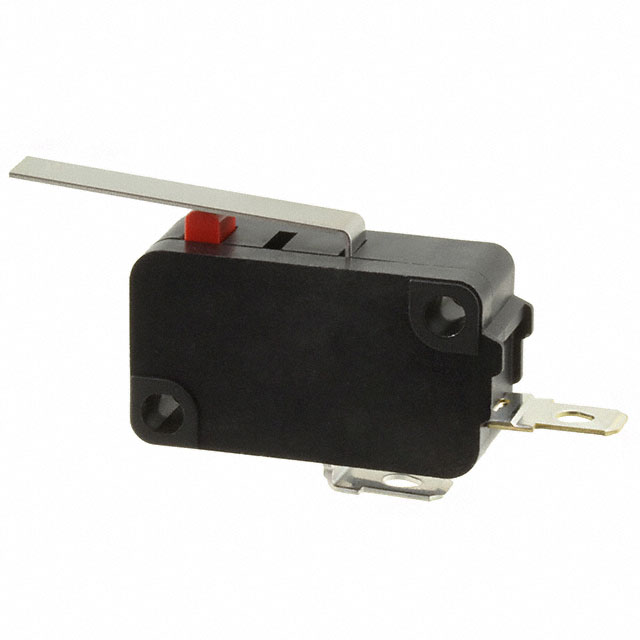

VX-012 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Mechanical Life | Electrical Life | Mounting Type | Termination Style | Operating Position | Operating Position | Ingress Protection | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Actuator Type | Pretravel | Pretravel | Overtravel [custom] | Overtravel [custom] | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Operating Force | Differential Travel | Differential Travel | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10000000 Cycles | 1000000 Cycles | Chassis Mount | Quick Connect | 0.6 in | 15.2 mm | IP40 | SPDT | -25 °C | 80 °C | 125 V | Lever Straight | 4 mm | 0.157 in | 0.062 " | 1.6 mm | On-Mom | 100 mA | 30 V | 30 gf | 0.031 in | 0.8 mm | ||
 Omron Electronics Inc-EMC Div | 10000000 Cycles | 1000000 Cycles | Chassis Mount | Solder Quick Connect | 0.6 in | 15.2 mm | IP40 | SPST-NO | -25 °C | 80 °C | 125 V | Lever Straight | 4 mm | 0.157 in | 0.062 " | 1.6 mm | Off-Mom | 100 mA | 30 V | 30 gf | 0.031 in | 0.8 mm | 4.7 mm | 0.187 in |
