MOV-14D Series

Catalog

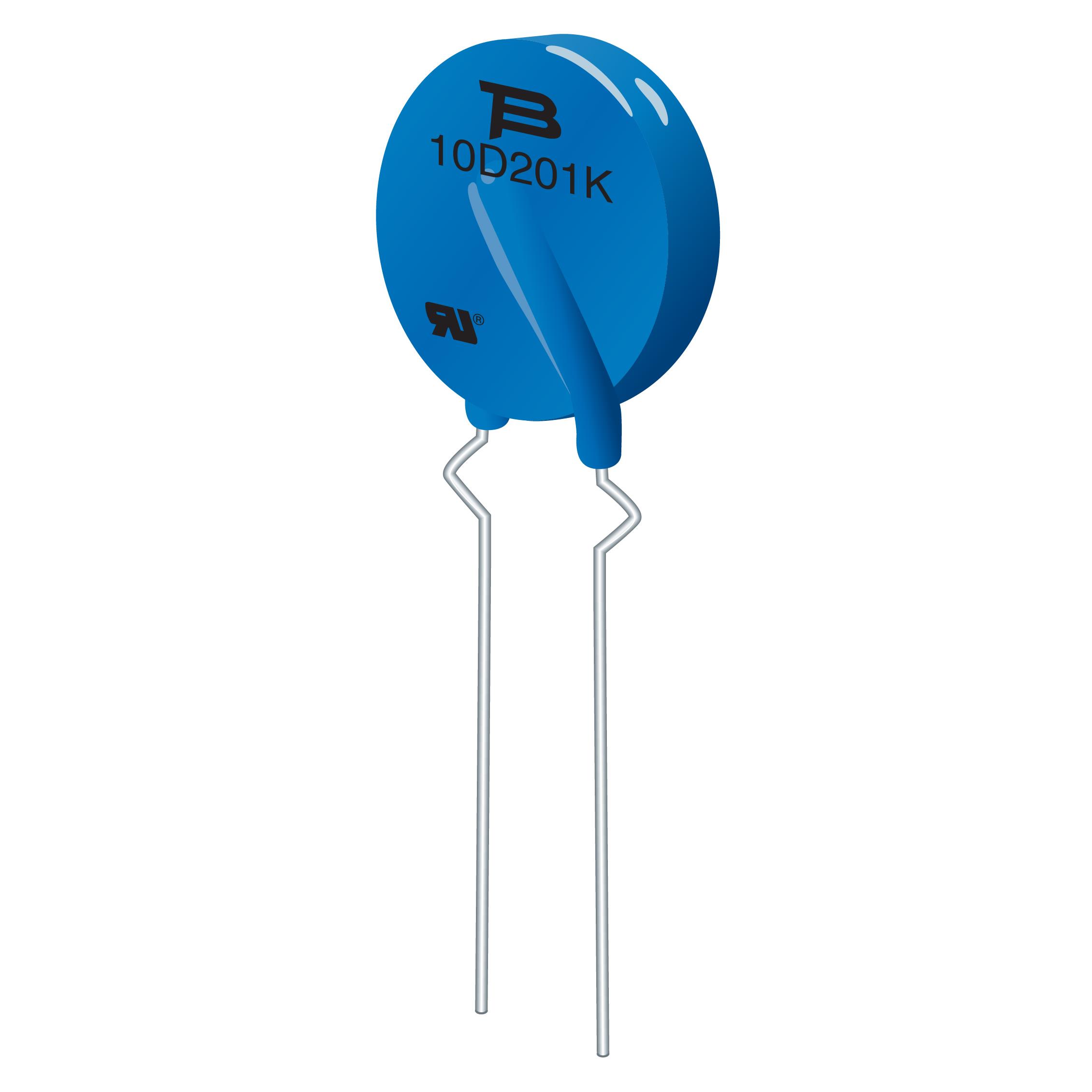

VARISTORS 14MM RADIAL DISC MOV - KINKED LEADS, BULK

Part	Current - Surge	Mounting Type	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Number of Circuits	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Energy	Maximum DC Volts	Package / Case	Varistor Voltage (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Maximum DC Volts [Max]	Varistor Voltage (Max)
Bourns Inc. MOV-14D101KK	4.5 kA	Through Hole	90 V	2400 pF	1	60 V	110 V	28 J	85 V	Disc 14mm	100 V	-40 °C	105 °C
Bourns Inc. MOV-14D681KK	4.5 kA	Through Hole	612 V	360 pF	1	420 V	748 V	130 J		Disc 14mm	680 V	-40 °C	105 °C	560 V
Bourns Inc. MOV-14D431KK	4.5 kA	Through Hole	387 V	552 pF	1	275 V		115 J		Disc 14mm	430 V	-40 °C	105 °C	350 V	473 V
Bourns Inc. MOV-14D680KK	1 kA	Through Hole	61 V	6240 pF	1	40 V		14 J		Disc 14mm	68 V	-40 °C	105 °C	56 V	75 V
Bourns Inc. MOV-14D361KK	4.5 kA	Through Hole	324 V	672 pF	1	230 V	396 V	93 J		Disc 14mm	360 V	-40 °C	105 °C	300 V
Bourns Inc. MOV-14D330KKTR	1 kA	Through Hole	30 V	1 kHz 8640 pF	1	20 V	36 V	7.5 J		Disc 14mm	33 V	-40 °C	105 °C	26 V
