NOJC Series

Catalog

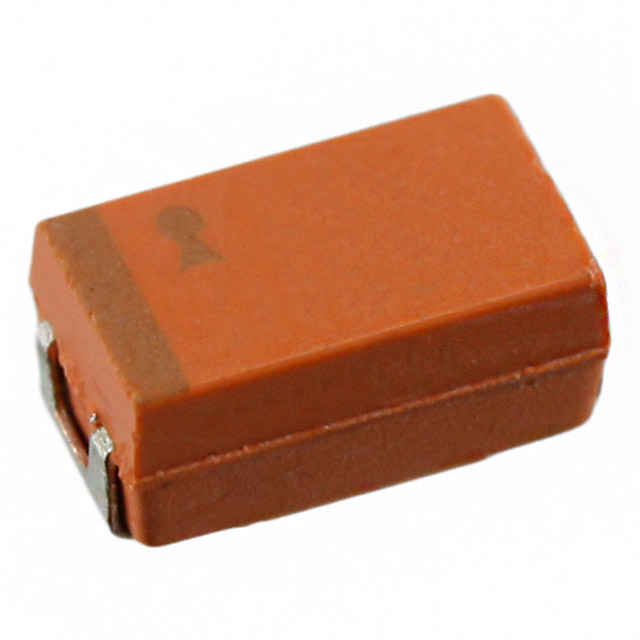

CAP NIOB OXIDE 22UF 20% 10V 2312

Part	Package / Case	Voltage - Rated	Capacitance	Dissipation Factor	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current - Leakage	ESR (Equivalent Series Resistance)	Supplier Device Package	Supplier Device Package	Tolerance
KYOCERA AVX NOJC226M010RWJ	2312 (6032 Metric)	10 V	22 µF	6 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	4.4 µA	500 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC336M010SWJ	2312 (6032 Metric)	10 V	33 ÁF	6 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	6.6 µA	500 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC107M002SWJ	2312 (6032 Metric)	2.5 V	100 µF	6 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	5 µA	400 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC107M006SWJ	2312 (6032 Metric)	6.3 VDC	100 µF	8 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	12 µA	400 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC686M010RWJ	2312 (6032 Metric)	10 V	68 µF	12 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	13.6 µA	500 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC336M006SWJ	2312 (6032 Metric)	6.3 VDC	33 ÁF	6 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	4 µA	500 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC686M010SWJ	2312 (6032 Metric)	10 V	68 µF	12 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	13.6 µA	500 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC227M006RWJ	2312 (6032 Metric)	6.3 VDC	220 µF	14 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	26.4 µA	400 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC476M010RWJ	2312 (6032 Metric)	10 V	47 µF	6 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	9.4 µA	400 mOhms	6032 Metric	2312	20 %
KYOCERA AVX NOJC226M010SWJ	2312 (6032 Metric)	10 V	22 µF	6 %	-55 C	105 ░C	3.2 mm	0.126 in	0.236 in	6 mm	Surface Mount	4.4 µA	500 mOhms	6032 Metric	2312	20 %
