DI0XX Series

Catalog

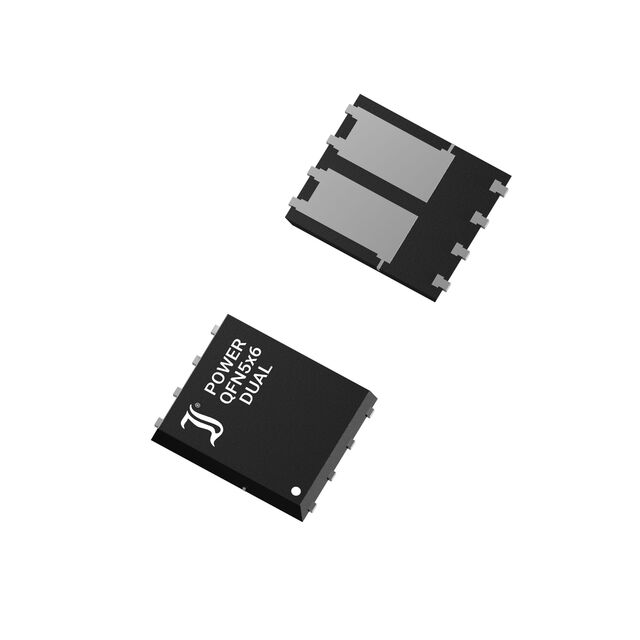

MOSFETS MOSFET, POWERQFN 5X6, 100V, 28A, 150C, N, AEC-Q101

Part	Configuration	Drain to Source Voltage (Vdss)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Grade	Power - Max	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Technology	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs	Qualification	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Power Dissipation (Max) [Max]
Diotec Semiconductor DI028N10PQ2-AQ	2 N-Channel 2 N-Channel (Dual)	100 V	8-PowerTDFN	28 A	150 °C	-55 °C	2.5 V	Automotive	32.7 W	TDSON-8-4	1028 pF	MOSFET (Metal Oxide)	21 mOhm	22 nC	AEC-Q101	Surface Mount
Diotec Semiconductor DI087N03D1-AQ		30 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	87 A	150 °C	-55 °C	2.5 V	Automotive		TO-252 (DPAK)	2486 pF	MOSFET (Metal Oxide)			AEC-Q101	Surface Mount	4.5 V 10 V	N-Channel	41.67 W	39 nC	20 V	3 mOhm
Diotec Semiconductor DI006P02PW		20 V	8-PowerUDFN	6 A	150 °C	-55 °C	1 V			8-QFN (2x2)		MOSFET (Metal Oxide)		13 nC		Surface Mount		P-Channel	2 W		12 V	25 mOhm	1242 pF	2.5 V	4.5 V
Diotec Semiconductor DI050P03PT-AQ		30 V	8-PowerVDFN	50 A	150 °C	-55 °C	2.5 V	Automotive		8-QFN (3x3)	3721 pF	MOSFET (Metal Oxide)		70 nC	AEC-Q101	Surface Mount	4.5 V 10 V	P-Channel			20 V	8 mOhm				39 W
Diotec Semiconductor DI064P04D1		40 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	64 A	150 °C	-55 °C	4 V			TO-252 (DPAK)		MOSFET (Metal Oxide)		105 nC		Surface Mount	10 V	P-Channel			20 V	7.6 mOhm	7475 pF			48.3 W
Diotec Semiconductor DI050N06D1-AQ		65 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	50 A	150 °C	-55 °C	2.5 V	Automotive		TO-252AA (DPAK)	825 pF	MOSFET (Metal Oxide)		14 nC	AEC-Q101	Surface Mount	4.5 V 10 V	N-Channel	42 W		20 V	11 mOhm

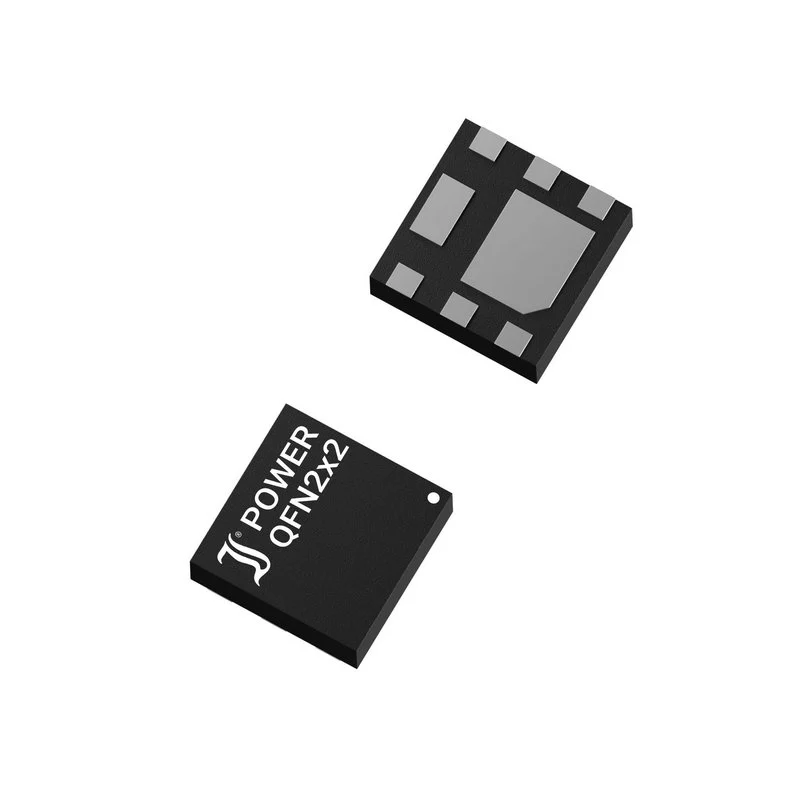

Diotec Semiconductor DI010N03PW-AQ		30 V	6-PowerUDFN	10 A	150 °C	-55 °C	2 V	Automotive		6-QFN (2x2)	1120 pF	MOSFET (Metal Oxide)		25 nC	AEC-Q101	Surface Mount	4.5 V 10 V	N-Channel	1.4 W		20 V	12 mOhm
