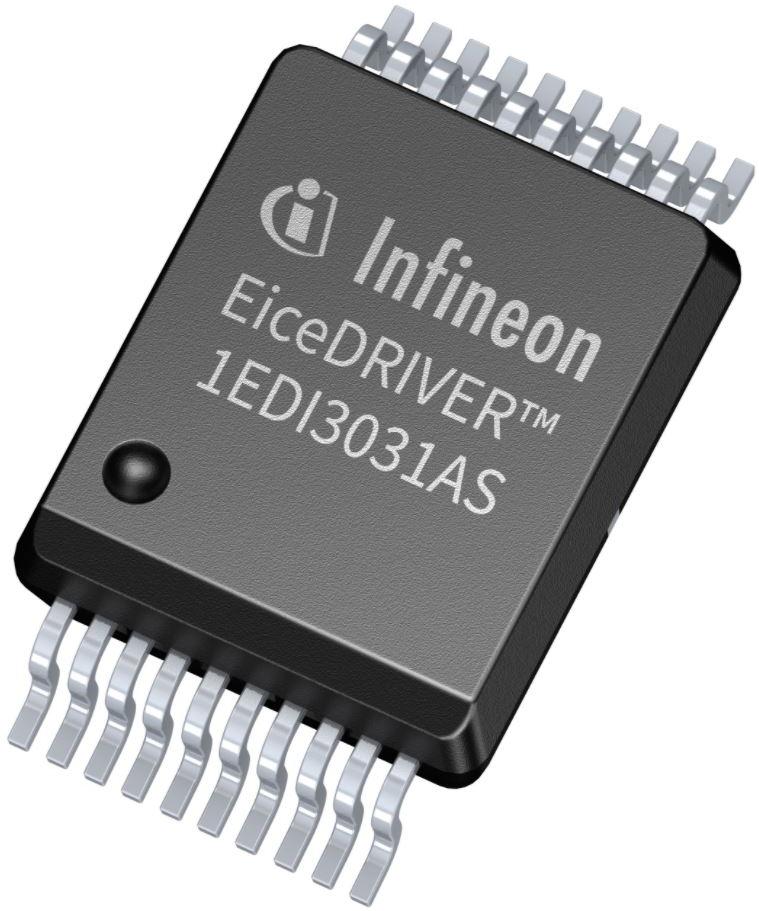

1EDI3031 Series
Manufacturer: INFINEON
Beta
⌘K
THE 1EDI3031AS IS AN AUTOMOTIVE QUALIFIED SINGLE CHANNEL HIGH VOLTAGE GATE DRIVER OPTIMIZED FOR SIC TECHNOLOGIES
| Part | Propagation Delay tpLH / tpHL (Max) [custom] | Propagation Delay tpLH / tpHL (Max) [custom] | Pulse Width Distortion (Max) [Max] | Number of Channels [custom] | Voltage - Output Supply [Min] | Voltage - Output Supply [Max] | Approval Agency | Technology | Package / Case | Grade | Rise / Fall Time (Typ) | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Qualification | Current - Peak Output | Voltage - Isolation | Common Mode Transient Immunity (Min) [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 120 ns | 120 ns | 20 ns | 1 | 3 V | 5.5 V | UL VDE | Magnetic Coupling | 20-BFSOP (0.295" 7.50mm Width) | Automotive | 45 ns 55 ns | 20 A | 20 A | Surface Mount | -40 C | 150 °C | AEC-Q100 | 12 A | 5700 Vrms | 150 kV/µs | PG-DSO-20-91 |
