SCM-1511 Series
Manufacturer: East Electronics
Beta
⌘K

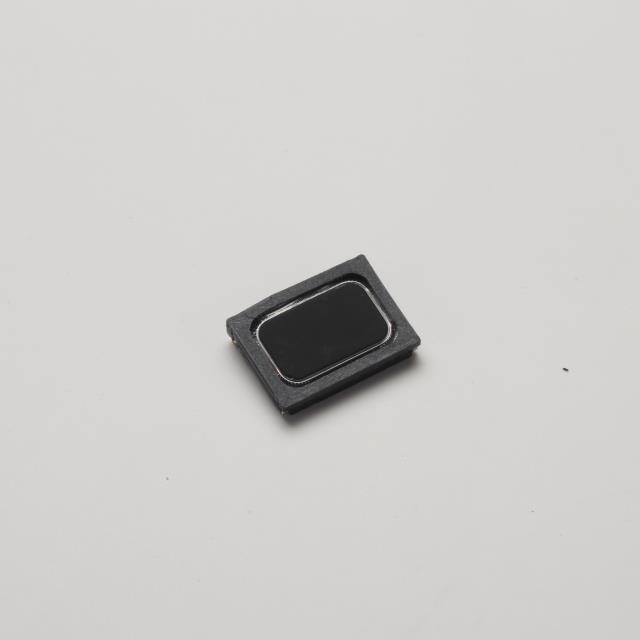

SPEAKER 8OHM 800MW 93DB
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Efficiency - Testing | Efficiency - Type | Efficiency - dBA | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power - Rated | Frequency Range [Min] | Frequency Range [Max] | Frequency - Self Resonant | Power - Max [Max] | Shape | Material - Cone [custom] | Impedance | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 East Electronics | 0.098 in | 2.5 mm | 10 mm | Sound Pressure Level (SPL) | 93 dBA | 11 mm | 0.433 in | 0.591 in | 15 mm | 0.8 W | 550 Hz | 20 kHz | 550 Hz | 1.2 W | Rectangular | Polyetheretherketone (PEEK) | 8 Ohms | Spring Type |
