053047 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 6POS 1.25MM

Part	Shrouding	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Insulation Height [z]	Insulation Height [z]	Fastening Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Shape	Number of Positions Loaded	Applications	Number of Positions	Material Flammability Rating	Contact Type	Mounting Type	Contact Length - Post	Contact Length - Post	Termination	Insulation Color	Contact Finish - Post	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating

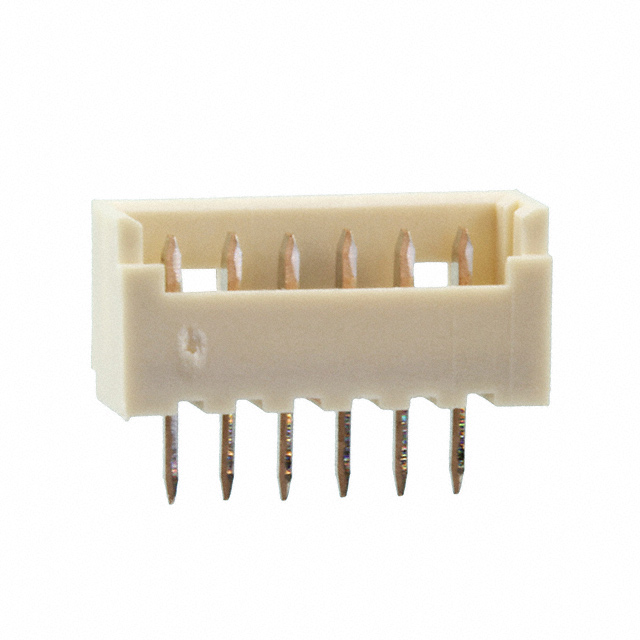

Molex 0530470610	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	35.4 µin	0.9 µm	Polyamide (PA66) Nylon 6/6	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All	Automotive General Purpose Industrial Medical	6	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin

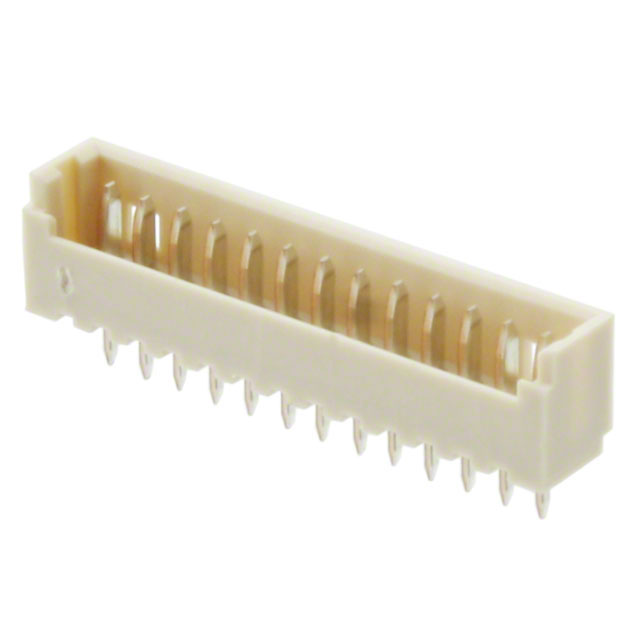

Molex 0530471310	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	35.4 µin	0.9 µm	Polyamide (PA66) Nylon 6/6	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All	Automotive General Purpose Industrial Medical	13	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin

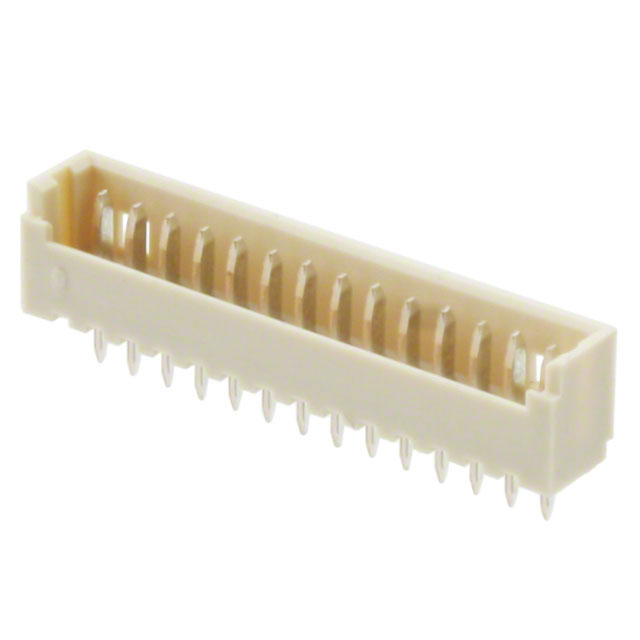

Molex 0530471410	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	35.4 µin	0.9 µm	Polyamide (PA66) Nylon 6/6	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All	Automotive General Purpose Industrial Medical	14	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin
Molex 0530471070	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		10	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
Molex 0530470470	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		4	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
Molex 0530471270	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		12	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
Molex 0530470870	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		8	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
Molex 0530470270	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		2	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
Molex 0530470770	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		7	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
Molex 0530471370	Shrouded - 4 Wall	Board to Cable/Wire	1.25 mm	0.049 in	15 µin	0.38 µm	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	0.165 in	4.2 mm	Detent Lock	Header	2.25 mm	0.089 in	1	Rectangular	All		13	UL94 V-0	Male Blade	Through Hole	0.091 in	2.3 mm	Solder	Natural	Tin	Varies by Wire Gauge	85 °C	-40 °C	Gold	1 çm	39.4 çin	125 VAC
