MTV18 Series

Catalog

MALE DISCONNECT VINYL INS HIGHLAND BAG 25/BAG

Part	Insulation Diameter	Insulation Diameter	Features	Terminal Type	Gender	Tab Width [x]	Tab Width [x]	Length - Overall [x]	Length - Overall [x]	Color	Insulation	Contact Finish	Tab Thickness	Tab Thickness	Mounting Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Termination

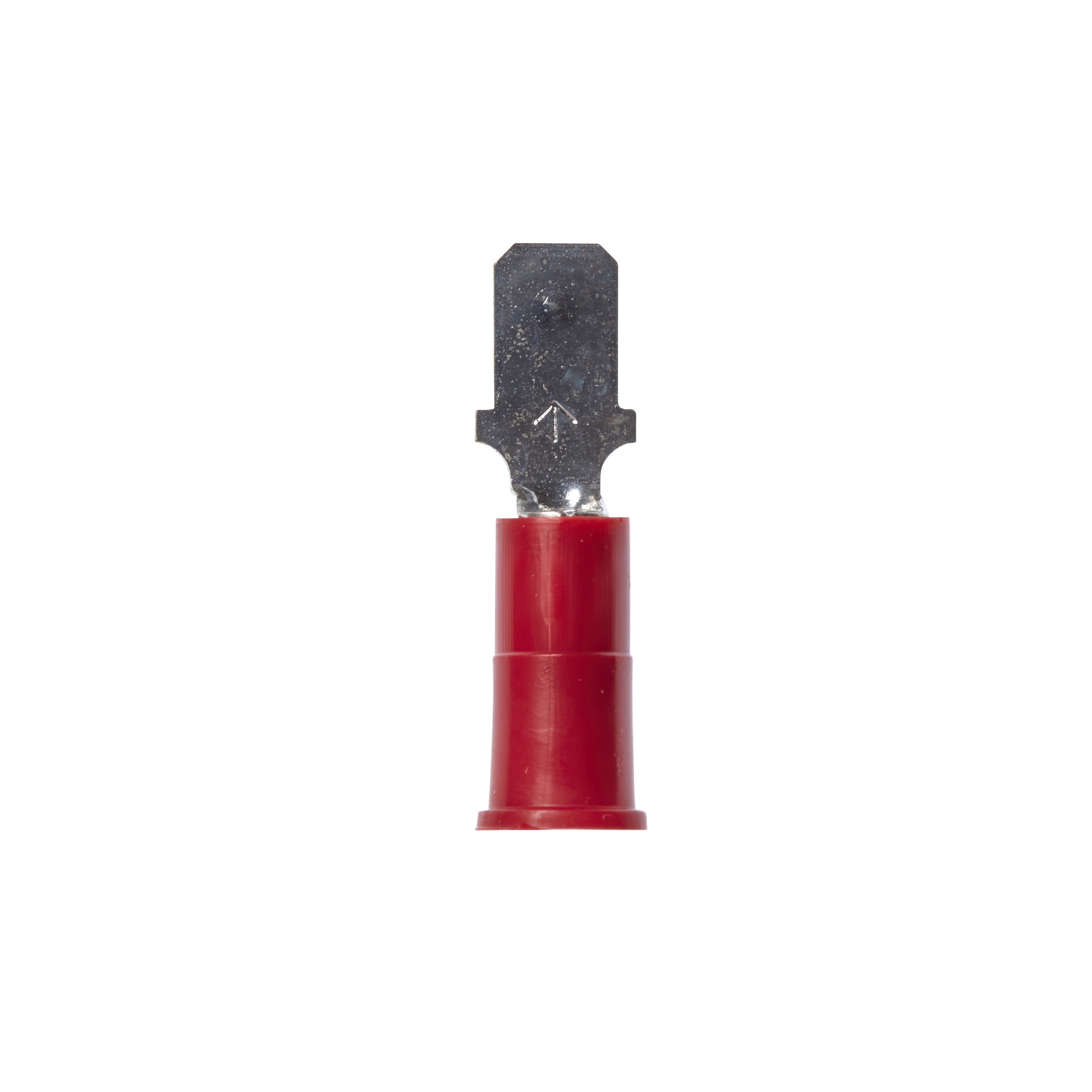

3M Electronic Specialty MTV18-187Q	0.145 in	3.68 mm	Butted Seam	Standard	Male	0.187 in	4.75 mm	0.85 in	21.59 mm	Red	Non-Mating End Insulated	Tin	0.02 in	0.51 mm	Free Hanging (In-Line)	Copper ETP	22 AWG	17.5 AWG	Crimp
3M Electronic Specialty MTV18-250Q	0.145 in	3.68 mm	Butted Seam	Standard	Male	0.25 in	6.35 mm	0.93 in	23.62 mm	Red	Non-Mating End Insulated	Tin	0.032 in	0.81 mm	Free Hanging (In-Line)	Copper ETP	22 AWG	17.5 AWG	Crimp
