2108923 Series

Catalog

EXTERNAL ANT., SMA, WI-FI 6E(BLACK)

Part	Number of Bands	Height (Max) [z]	Height (Max) [Max] [z]	RF Family/Standard	Frequency (Center/Band)	Antenna Type	VSWR	Gain	Frequency Range [Max]	Frequency Range [Min]	Mounting Type	Applications	Frequency Group	Termination
TE Connectivity AMP Connectors 2108923-1	3	135.8 mm	5.346 in	802.15.4 Bluetooth WiFi	2.45 GHz 5.5125 GHz 6525 MHz	Whip Straight	1.9	3.2 dBi	2.5 GHz 5.875 GHz 7.125 GHz	2.4 GHz 5.15 GHz 5.925 GHz	Connector Mount	802.11a/b/g/n/ac/ad Bluetooth Wi-Fi WLAN Zigbee™	Wide Band

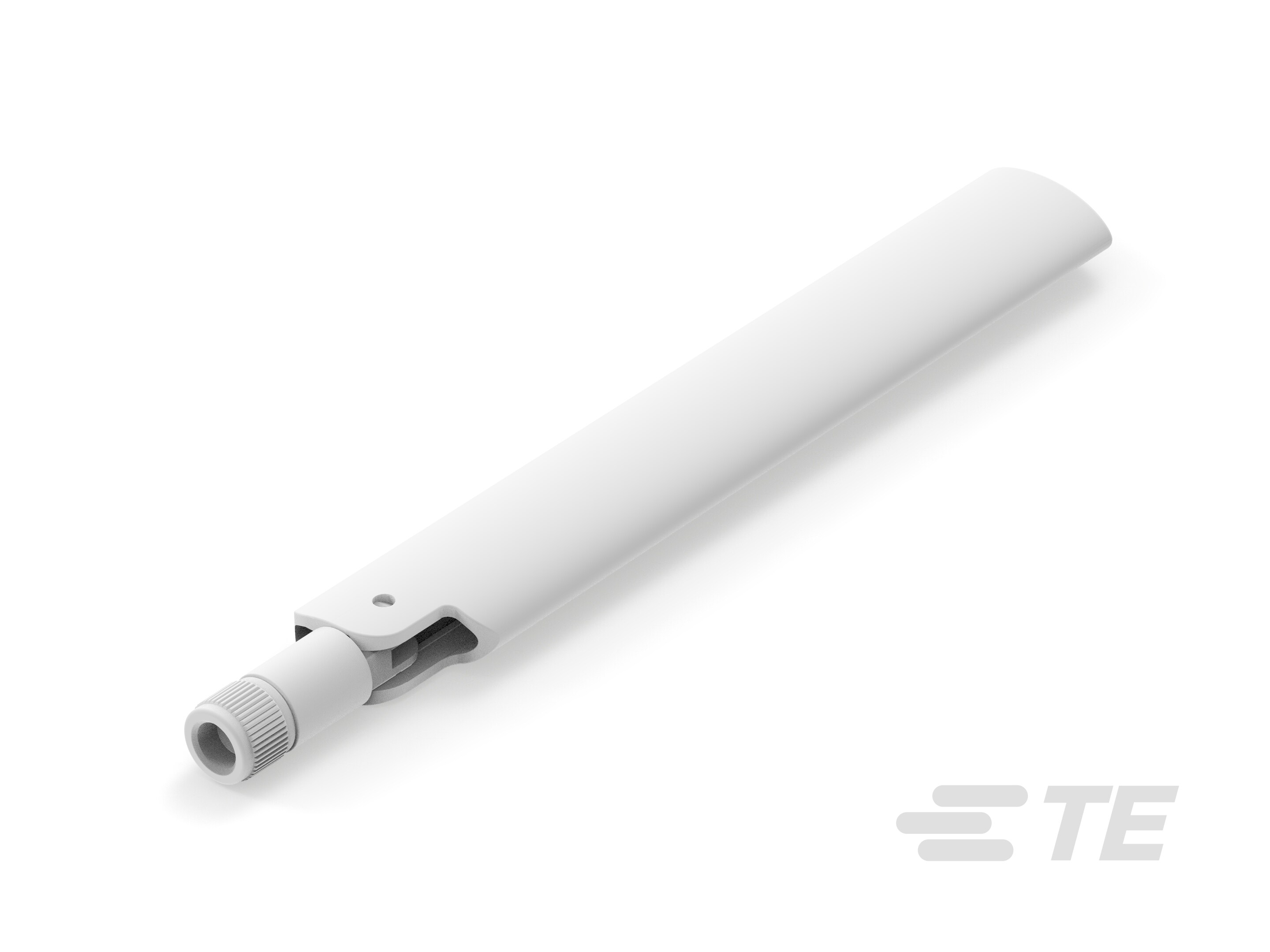

TE Connectivity AMP Connectors 2108923-2	3	135.8 mm	5.346 in	802.15.4 Bluetooth WiFi	2.45 GHz 5.5125 GHz 6525 MHz	Whip Straight	1.9	3.2 dBi	2.5 GHz 5.875 GHz 7.125 GHz	2.4 GHz 5.15 GHz 5.925 GHz	Connector Mount	802.11a/b/g/n/ac/ad Bluetooth Wi-Fi WLAN Zigbee™	Wide Band
TE Connectivity AMP Connectors 2108923-4	3	135.8 mm	5.346 in	802.15.4 Bluetooth WiFi	2.45 GHz 5.5125 GHz 6525 MHz	Tilt Whip	1.9	6 dBi	2.5 GHz 5.875 GHz 7.125 GHz	2.4 GHz 5.15 GHz 5.925 GHz	Connector Mount	802.11 a/b/g/n/ac/ad Bluetooth Wi-Fi Zigbee™	Wide Band	RP-SMA Male
