GRACE INERTIA 1.25 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SGI 1.25 HDR, 10P, VT, KEY A, NATURAL
| Part | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Color | Features | Fastening Type | Contact Shape | Contact Finish - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Shrouding | Mounting Type | Termination | Insulation Material | Voltage Rating | Number of Positions Loaded | Style | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Insulation Height | Insulation Height | Contact Type | Number of Positions | Current Rating (Amps) | Color | Contact Termination | Pitch | Pitch | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.049 in | 1.25 mm | Brass | Natural | Solder Retention | Push-Pull | Square | Tin | UL94 V-0 | -40 C | 105 ░C | Header | 1 | Shrouded - 4 Wall | Surface Mount | Solder | Nylon 4T Polyamide (PA4T) | 50 VAC | All | Board to Cable/Wire | 39.4 µin | 1 µm | 5.9 mm | 0.232 in | Male Pin | 10 | ||||||
 TE Connectivity AMP Connectors | 0.049 in | 1.25 mm | Brass | Black | Solder Retention | Push-Pull | Square | Tin | UL94 V-0 | -40 C | 105 ░C | Header | 1 | Shrouded - 4 Wall | Right Angle Surface Mount | Solder | Nylon 4T Polyamide (PA4T) | 50 VAC | All | Board to Cable/Wire | 39.4 µin | 1 µm | 4.9 mm | 0.193 " | Male Pin | 8 | Varies by Wire Gauge | |||||
 TE Connectivity AMP Connectors | Latch Lock | -40 C | 105 ░C | Plug | 1 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Socket | 2 | Natural | Crimp | 0.049 in | 1.25 mm | |||||||||||||||||||
 TE Connectivity AMP Connectors | Latch Lock | -40 C | 105 ░C | Plug | 1 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Socket | Natural | Crimp | 0.049 in | 1.25 mm | ||||||||||||||||||||
 TE Connectivity AMP Connectors | 0.049 in | 1.25 mm | Brass | Natural | Solder Retention | Latch Holder | Square | Tin | UL94 V-0 | -40 C | 105 ░C | Header | 1 | Shrouded - 4 Wall | Surface Mount | Solder | Nylon 4T Polyamide (PA4T) | 50 VAC | All | Board to Cable/Wire | 39.4 µin | 1 µm | 5.9 mm | 0.232 in | Male Pin | 5 | 2.2 A | |||||
 TE Connectivity AMP Connectors | 0.049 in | 1.25 mm | Brass | Natural | Pick and Place Solder Retention | Friction Lock | Square | Tin | UL94 V-0 | -40 C | 105 ░C | Header | 1 | Shrouded - 4 Wall | Surface Mount | Solder | Nylon 4T Polyamide (PA4T) | 50 VAC | All | Board to Cable/Wire | 5.9 mm | 0.232 in | Male Pin | Varies by Wire Gauge | ||||||||
 TE Connectivity AMP Connectors | Latch Lock | -40 C | 105 ░C | Plug | 1 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Socket | 2 | Black | Crimp | 0.049 in | 1.25 mm | |||||||||||||||||||
 TE Connectivity AMP Connectors | 0.049 in | 1.25 mm | Brass | Natural | Solder Retention | Latch Holder | Square | Tin | UL94 V-0 | -40 C | 105 ░C | Header | 1 | Shrouded - 4 Wall | Surface Mount | Solder | Nylon 4T Polyamide (PA4T) | 50 VAC | All | Board to Cable/Wire | 39.4 µin | 1 µm | 5.9 mm | 0.232 in | Male Pin | 4 | 2.2 A | |||||

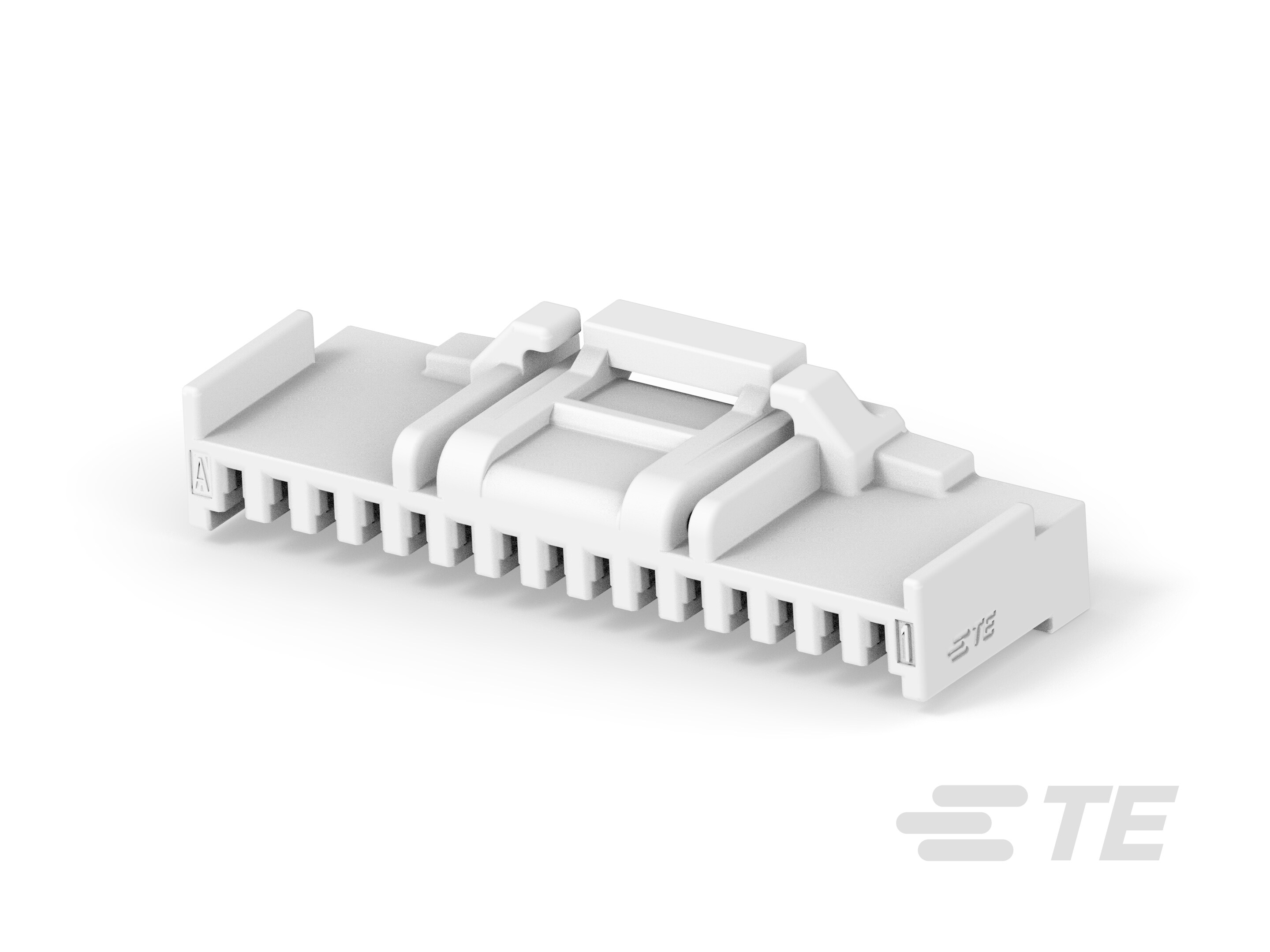

 TE Connectivity AMP Connectors | Latch Lock | -40 C | 105 ░C | Plug | 1 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Socket | 15 | Natural | Crimp | 0.049 in | 1.25 mm | |||||||||||||||||||
TE Connectivity AMP Connectors | Latch Lock | -40 C | 105 ░C | Plug | 1 | Free Hanging (In-Line) | Nylon Polyamide (PA) | Female Socket | 5 | Black | Crimp | 0.049 in | 1.25 mm |
