AUB1212 Series

Catalog

FAN AXIAL 120X25.4MM 12VDC WIRE

Part	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Approval Agency	Fan Type	RPM	Termination	Static Pressure	Static Pressure	Voltage - Rated	Width [y]	Noise	Power (Watts)	Air Flow	Air Flow	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Features

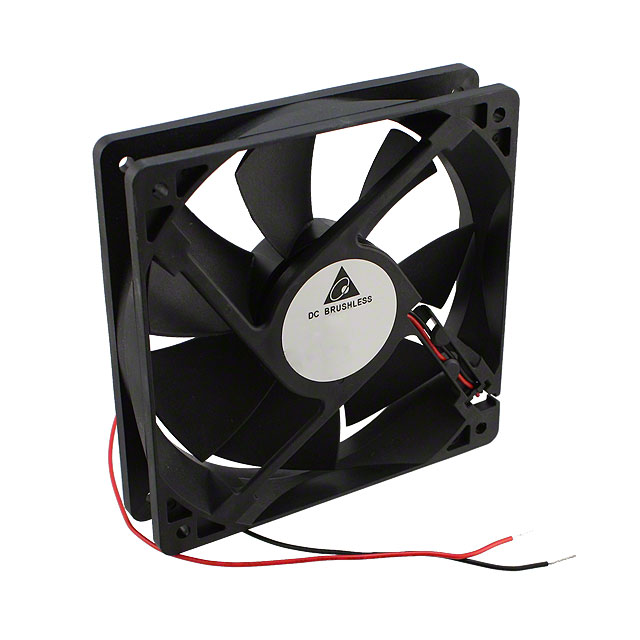

Delta Electronics AUB1212M	Plastic	Plastic	0.18 A	13.8 VDC	7 V	40 °C 50000 Hrs	120 mm	120 mm	Superflo	CE CSA UL VDE	Tubeaxial	2200 RPM	2 Wire Leads	50.6 Pa	0.203 in H2O	12 VDC	25.4 mm	35.5 dB	2.16 W	73.8 CFM	2.07 mł/min	0.437 lb	198 g	-10 °C	60 °C
Delta Electronics AUB1212H-CK15	Plastic	Plastic	270 mA	13.2 VDC	10.8 VDC	40 °C 50000 Hrs	120 mm	120 mm	Superflo	CE CSA UL VDE	Tubeaxial	2200 RPM	4 Wire Leads			12 VDC	25.4 mm	38 dB(A)	3.24 W					-10 °C	60 °C	220 g	0.485 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)
