172457 Series

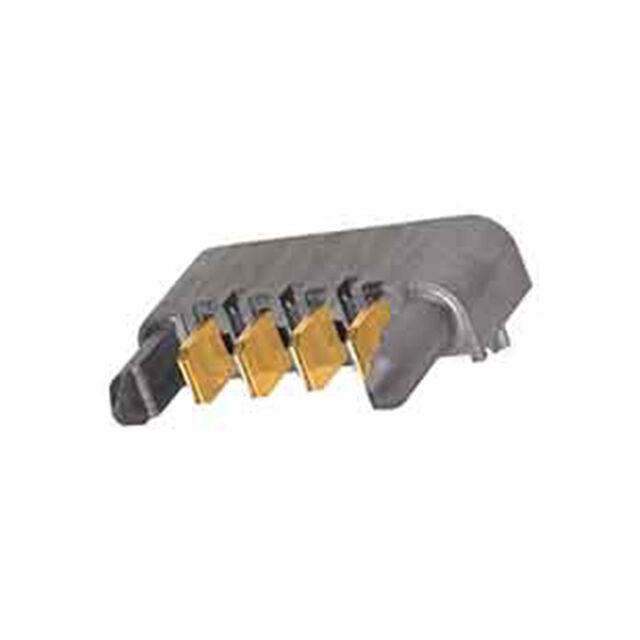

EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
Manufacturer: Molex
Catalog
EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
Beta
⌘K
EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
EXTreme Ten60Power Panel-to-Board Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
| Part | Connector Type | Color | Material Flammability Rating | Connector Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions Loaded | Contact Finish | Contact Layout, Typical | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Plug Male Blades | Black | UL94 V-0 | EXTreme Ten60Power | Through Hole Right Angle | 0.76 Ám | 30 Áin | All | Gold | 3 Power | Solder | Board Guide Guide Pin | -40 °C | 105 ░C |
Molex | Plug Male Blades | Black | UL94 V-0 | EXTreme Ten60Power | Through Hole Right Angle | 0.76 Ám | 30 Áin | All | Gold | 5 Power | Solder | Board Guide Guide Pin | -40 °C | 105 ░C |
