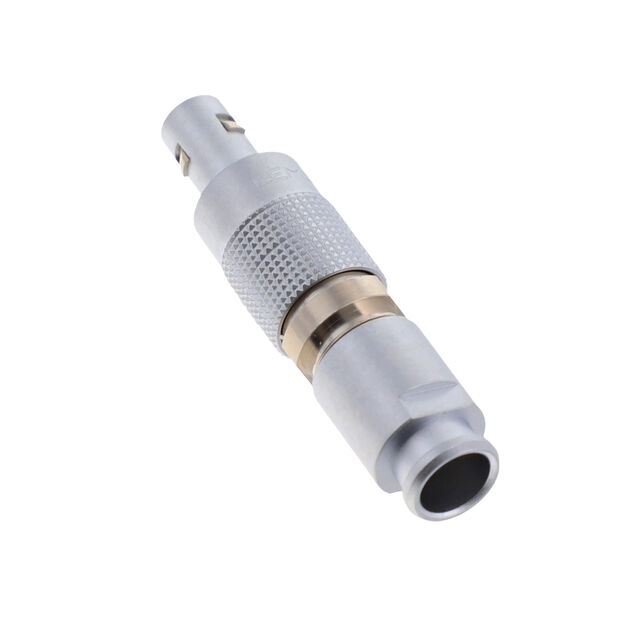

FFY.00.250 Series
Manufacturer: LEMO
Beta
⌘K
CONN INLINE PLUG
| Part | Body Finish | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Connector Style | Connector Type | Number of Ports | Impedance | Ingress Protection | Shield Termination | Housing Color | Contact Termination | Fastening Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nickel | Polytetrafluoroethylene (PTFE) | Brass | 5000 | Gold | Coaxial | Plug Male Pin | 1 | 50 Ohms | IP50 - Dust Protected | Clamp | Silver | Solder | Push-Pull | Free Hanging (In-Line) | ||||||
Chrome | Polytetrafluoroethylene (PTFE) | Brass | 5000 | Gold | Coaxial | Plug Male Pin | 1 | 50 Ohms | IP50 - Dust Protected | Clamp | Silver | Solder | Push-Pull | Free Hanging (In-Line) | ||||||
Nickel | Polytetrafluoroethylene (PTFE) | Brass | 5000 | Gold | NIM-CAMAC CD/N 549 | Plug Male Pin | 1 | 50 Ohms | IP50 - Dust Protected | Clamp | Silver | Solder | Push-Pull | Free Hanging (In-Line) | -55 C | 260 °C | 700 VDC | Brass | 142B RG-58 | |
Gold | Polytetrafluoroethylene (PTFE) | Brass | 5000 | Gold | NIM-CAMAC CD/N 549 | Plug Male Pin | 50 Ohms | IP50 - Dust Protected | Clamp | Gold | Solder | Push-Pull | Free Hanging (In-Line) | -55 C | 260 °C | 700 VDC | Brass | RG-58C | ||
Chrome | Polytetrafluoroethylene (PTFE) | Brass | 5000 | Gold | NIM-CAMAC CD/N 549 | Plug Male Pin | 1 | 50 Ohms | IP50 - Dust Protected | Clamp | Silver | Solder | Push-Pull | Free Hanging (In-Line) | -55 C | 260 °C | 700 VDC | Brass | 142B RG-58 |
