MBRD10100 Series

Catalog

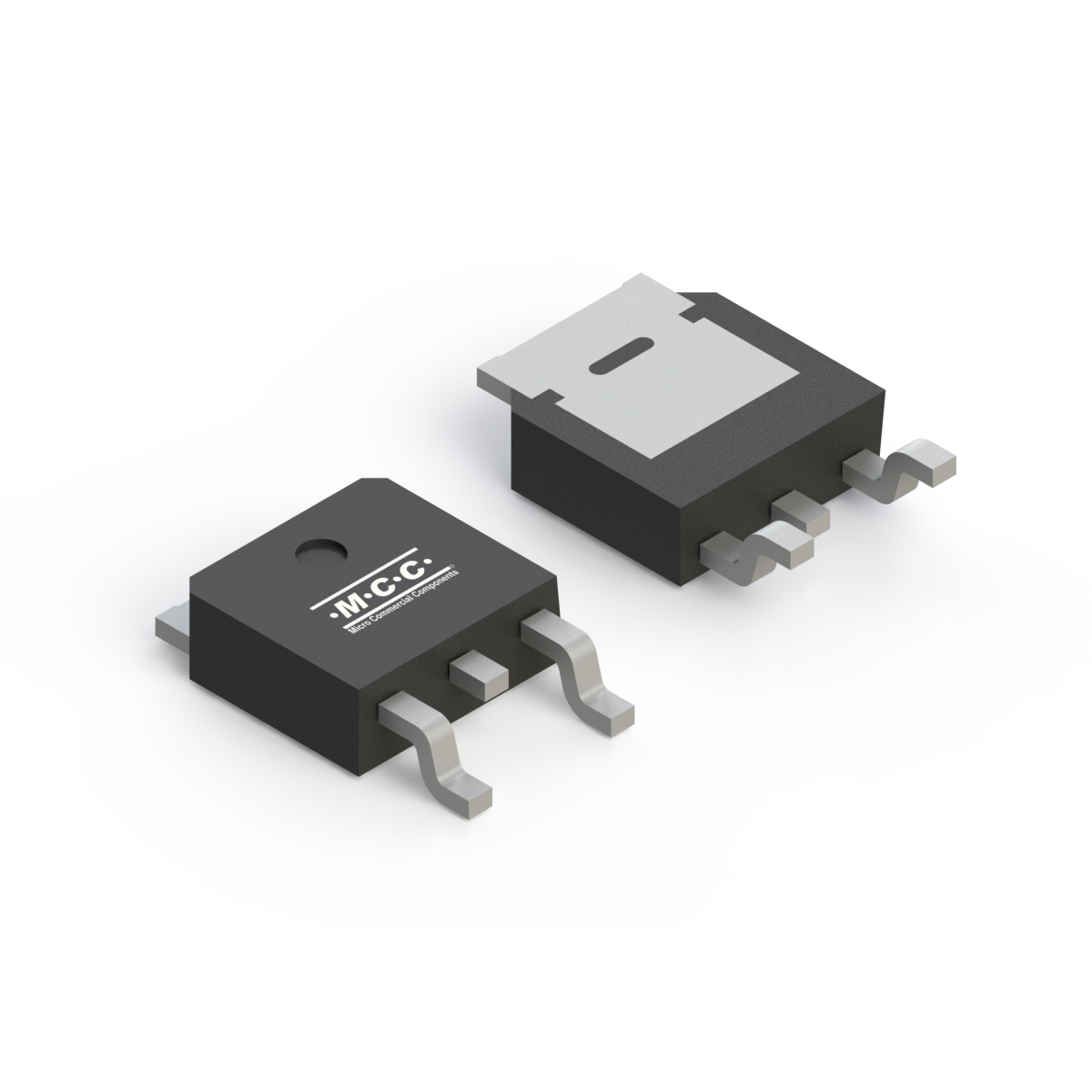

DIODE ARR SCHOTT 100V 10A DPAK

Part	Current - Average Rectified (Io) (per Diode)	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Configuration	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case
Micro Commercial Components MBRD10100CTS-TP	10 A	200 mA 500 ns	150 °C	-65 C	TO-252 (DPAK)	830 mV	10 µA	1 Pair Common Cathode	Surface Mount	100 V	Schottky	DPAK (2 Leads + Tab) SC-63 TO-252-3
Micro Commercial Components MBRD10100CTH-TP	10 A	200 mA 500 ns	175 ░C	-55 C	TO-252 (DPAK)	800 mV	10 µA	1 Pair Common Cathode	Surface Mount	100 V	Schottky	DPAK (2 Leads + Tab) SC-63 TO-252-3
Micro Commercial Components MBRD10100CT-TP	10 A	200 mA 500 ns	150 °C	-65 C	DPAK		500 µA	1 Pair Common Cathode	Surface Mount	100 V	Schottky	DPAK (2 Leads + Tab) SC-63 TO-252-3
