207526 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

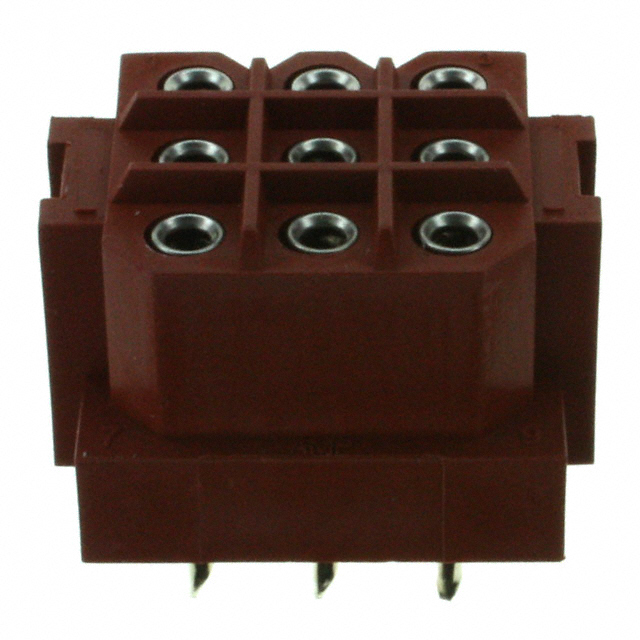

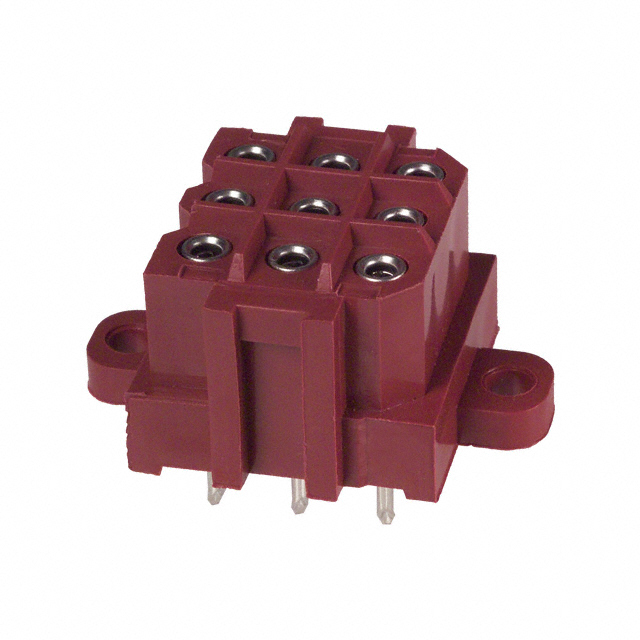

CONN HDR 9POS 0.197 GOLD PCB
| Part | Contact Finish - Post | Material Flammability Rating | Features | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish - Mating | Fastening Type | Current Rating (Amps) | Insulation Material | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Connector Type | Contact Material | Contact Type | Pitch - Mating | Pitch - Mating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Number of Rows | Voltage Rating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | UL94 V-0 | Mounting Flange | Circular | 0.181 in | 4.6 mm | All | 9 | 30 Áin | 0.76 Ám | 130 °C | -55 °C | Solder | Gold PdNi +Gold | Latch Holder | 7.5 A | Nylon Polyamide (PA) | Board to Cable/Wire | 150 Áin | 3.81 Ám | 0.565 in | 14.35 mm | Header | Phosphor Bronze | Female Socket | 5 mm | 0.197 " | Through Hole | 5 mm | 0.197 in | 3 | 600 V | Red |
 TE Connectivity Raychem Cable Protection | Tin | UL94 V-0 | Circular | 0.181 in | 4.6 mm | All | 9 | 30 Áin | 0.76 Ám | 130 °C | -55 °C | Solder | Gold | Latch Holder | 7.5 A | Nylon Polyamide (PA) | Board to Cable/Wire | 150 Áin | 3.81 Ám | 0.565 in | 14.35 mm | Header | Phosphor Bronze | Female Socket | 5 mm | 0.197 " | Through Hole | 5 mm | 0.197 in | 3 | 600 V | Red | |
 TE Connectivity Raychem Cable Protection | Tin | UL94 V-0 | Mounting Flange | Circular | 0.181 in | 4.6 mm | All | 9 | 150 Áin | 3.81 Ám | 130 °C | -55 °C | Solder | Latch Holder | 7.5 A | Nylon Polyamide (PA) | Board to Cable/Wire | 150 Áin | 3.81 Ám | 0.565 in | 14.35 mm | Header | Phosphor Bronze | Female Socket | 5 mm | 0.197 " | Through Hole | 5 mm | 0.197 in | 3 | 600 V | Red | |
TE Connectivity Raychem Cable Protection | Tin-Lead | UL94 V-0 | Mounting Flange | Circular | 0.181 in | 4.6 mm | All | 9 | 150 Áin | 3.81 Ám | 130 °C | -55 °C | Solder | Tin-Lead | Latch Holder | 7.5 A | Nylon Polyamide (PA) | Board to Cable/Wire | 150 Áin | 3.81 Ám | 0.565 in | 14.35 mm | Header | Phosphor Bronze | Female Socket | 5 mm | 0.197 " | Through Hole | 5 mm | 0.197 in | 3 | 600 V | Red |
