8770ZH Series
Manufacturer: Belden Inc.
Beta
⌘K

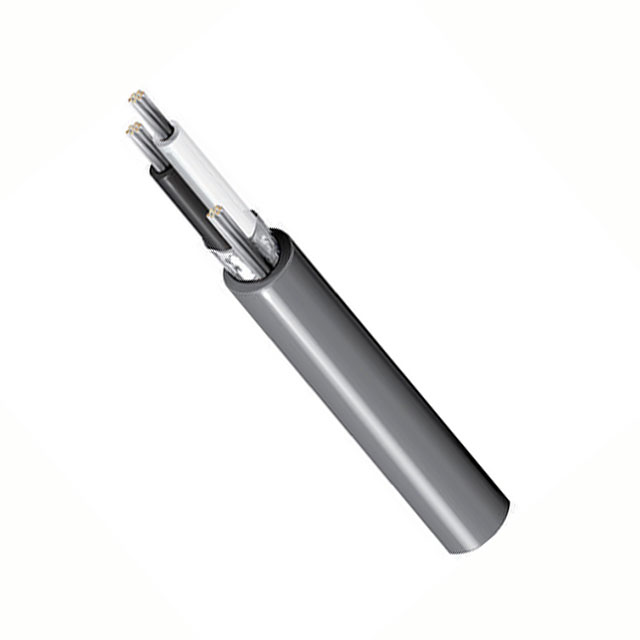

CABLE 3CON 18AWG CHROM SHLD
| Part | Shield Material | Shield Coverage | Shield Type | Conductor Insulation | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Cable Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Usage | Jacket Color | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foil | Polyethylene (PE) | 152.4 m | 500 ft | 0.033 in | 0.838 mm | 18 AWG | Multi-Conductor | Drain Wire | 6.25 mm | 0.246 in | Copper Tinned | Low Smoke Zero Halogen (LSZH) | 16 | 30 AWG | 3 | Audio Control Instrumentation | Chrome | 300 VDC |
