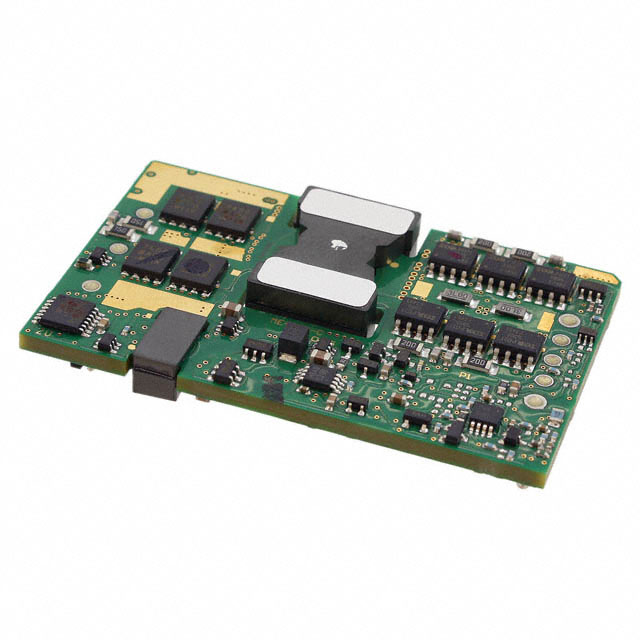

QME48T20120 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC DC CONVERTER 12V 240W
| Part | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Isolation | Number of Outputs | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Efficiency | Applications | Voltage - Output 1 | Power (Watts) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Mounting Type | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 75 V | 36 V | 2000 V | 1 | OCP OTP OVP UVLO | 0.48 " | 58.4 mm | 1.45 in | 36.8 mm | 2.3 in | 12.2 mm | 20 A | 93 % | ITE (Commercial) | 12 V | 240 Watts | Intermediate Bus Converter | 85 °C | -40 C | 8-DIP Module 1/4 Brick | Through Hole | |
 Bel Fuse Inc. | 75 V | 36 V | 2000 V | 1 | OCP OTP OVP Remote On/Off UVLO | 0.48 " | 57.9 mm | 1.45 in | 36.8 mm | 2.28 " | 12.2 mm | 20 A | 93 % | ITE (Commercial) | 12 V | 240 Watts | Intermediate Bus Converter | 85 °C | -40 C | 8-DIP Module 1/4 Brick | Through Hole | Active Low Enable |
 Bel Fuse Inc. | 75 V | 36 V | 2000 V | 1 | OCP OTP OVP Remote On/Off SCP UVLO | 0.48 " | 58.4 mm | 1.45 in | 36.8 mm | 2.3 in | 12.2 mm | 20 A | 93 % | ITE (Commercial) | 12 V | 240 Watts | Isolated Module | 85 °C | -40 C | 8-DIP Module 1/4 Brick | Through Hole | Active Low Enable |
Bel Fuse Inc. | 75 V | 36 V | 2000 V | 1 | OCP OTP OVP Remote On/Off SCP UVLO | 0.48 " | 58.4 mm | 1.45 in | 36.8 mm | 2.3 in | 12.2 mm | 20 A | 93 % | ITE (Commercial) | 12 V | 240 Watts | Isolated Module | 85 °C | -40 C | 8-DIP Module 1/4 Brick | Through Hole | Active High Enable |
