Polecat Series

Catalog

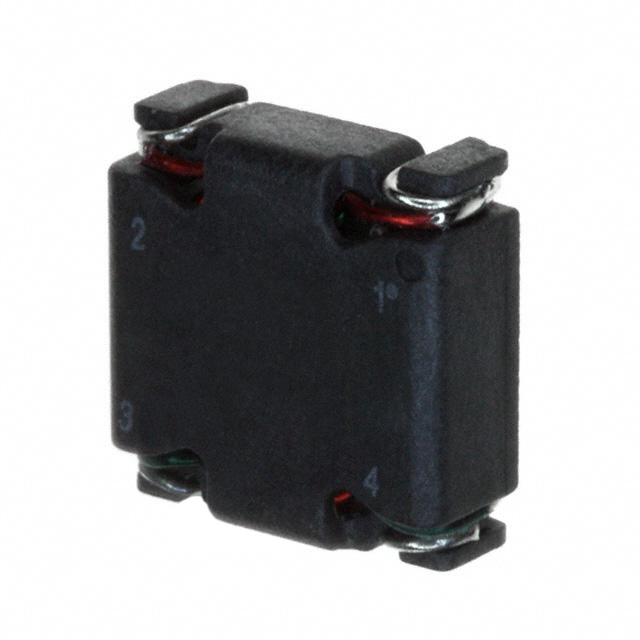

COUPLED INDUCTORS 117.3UH 20% TUBE

Part	Inductance - Connected In Series	DC Resistance (DCR) - Parallel [Max]	Package / Case	Number of Coils	Size / Dimension [y]	Size / Dimension [x]	Shielding	DC Resistance (DCR) - Series [Max]	Current Rating - Series	Inductance - Connected In Parallel	Current Rating - Parallel	Operating Temperature [Max]	Operating Temperature [Min]	Height	Height	Tolerance	Mounting Type	DC Resistance (DCR) - Series	DC Resistance (DCR) - Parallel
Pulse Electronics P0180NL	131 µH	106 mOhm	Nonstandard	2	12.7 mm	12.7 mm	Unshielded	404 mOhm	1.07 A	32.8 µH	2.2 A	130 °C	-40 C	5.46 mm	0.215 in	10 %	Surface Mount
Pulse Electronics P0179NL	88.2 µH	66.3 mOhm	Nonstandard	2	12.7 mm	12.7 mm	Unshielded		1.3 A	22.1 µH	2.6 A	130 °C	-40 C	5.46 mm	0.215 in	10 %	Surface Mount	266 mOhm
Pulse Electronics P0176NL	22.45 µH		Nonstandard	2	12.7 mm	12.7 mm	Unshielded	76 mOhm	2.6 A	5.5 µH	5.2 A	130 °C	-40 C	5.46 mm	0.215 in	10 %	Surface Mount		19 mOhm
