TX24-30R Series

Catalog

CONN RCPT 30POS R/A GOLD

Part	Contact Finish	Features	Number of Positions	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Pitch	Pitch	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights

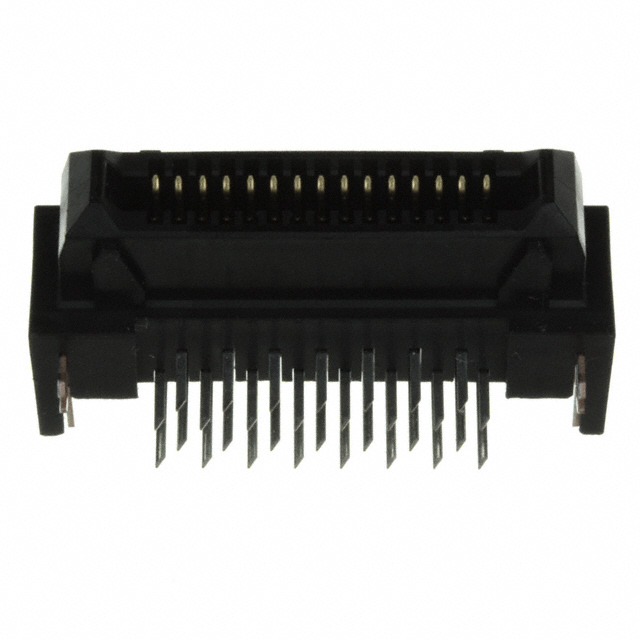

JAE Electronics TX24-30R-LT-H1E	Gold	Board Lock	30	0.354 in	9 mm	2	0.05 in	1.27 mm	Right Angle Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin

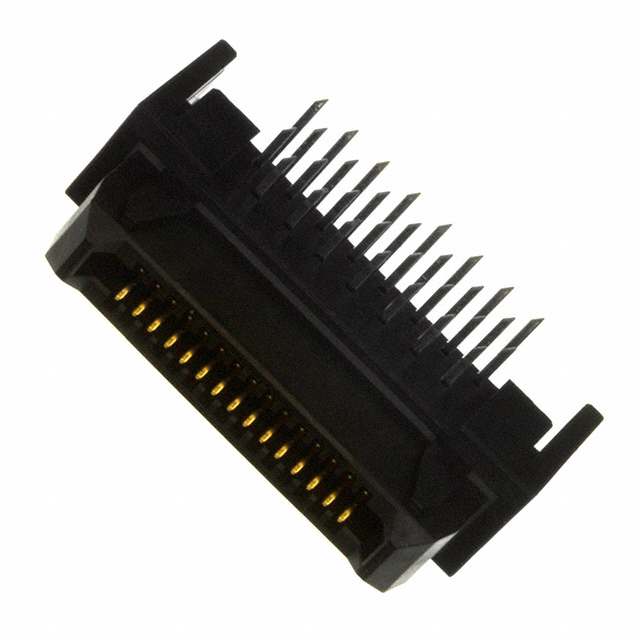

JAE Electronics TX24-30R-LT-N1E	Gold		30	0.354 in	9 mm	2	0.05 in	1.27 mm	Right Angle Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin

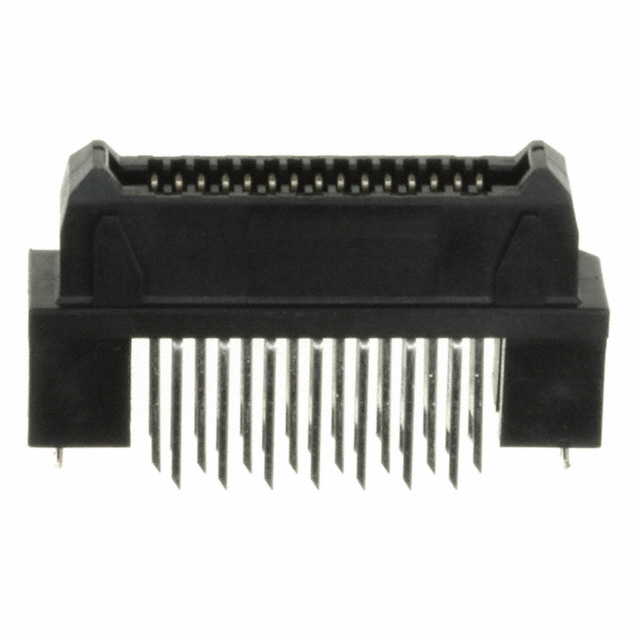

JAE Electronics TX24-30R-12ST-H1E	Gold	Board Lock	30	0.642 in	16.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	18 mm 20 mm 24 mm

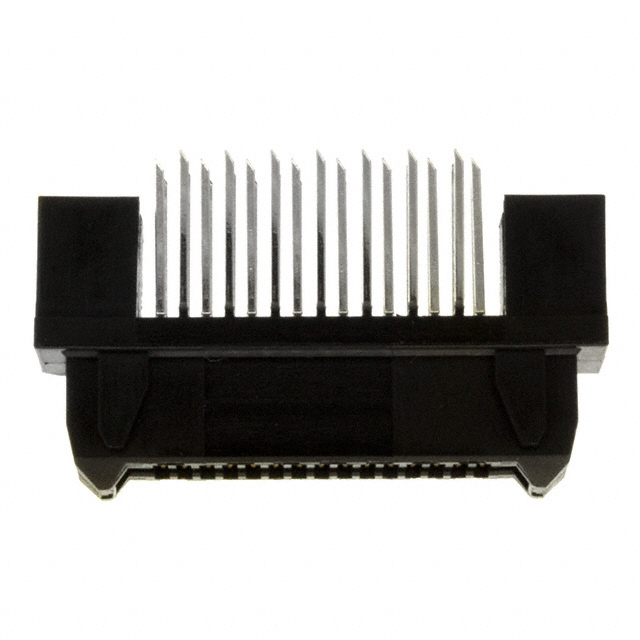

JAE Electronics TX24-30R-12ST-N1E	Gold		30	0.642 in	16.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	18 mm 20 mm 24 mm

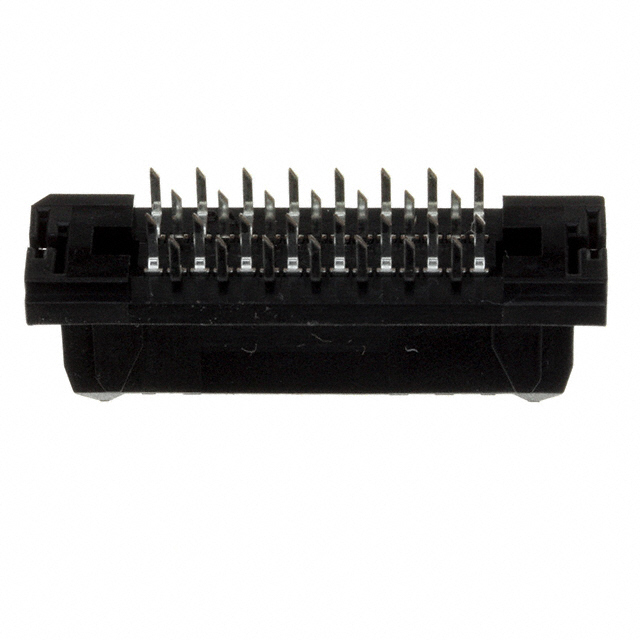

JAE Electronics TX24-30R-6ST-N1E	Gold		30	0.406 in	10.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	12 mm 14 mm 18 mm

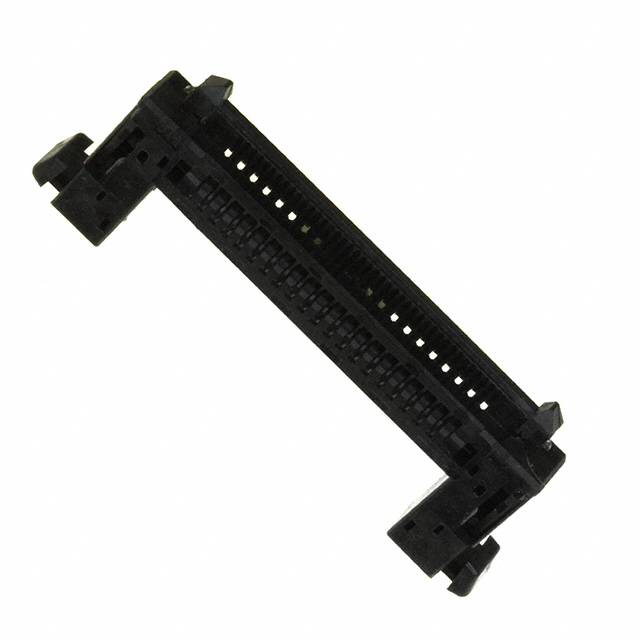

JAE Electronics TX24-30R-6ST-H1E	Gold	Board Lock	30	0.406 in	10.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	12 mm 14 mm 18 mm
JAE Electronics TX24-30R-6ST-E1E	Gold	Board Lock	30	0.406 in	10.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	12 mm 14 mm 18 mm

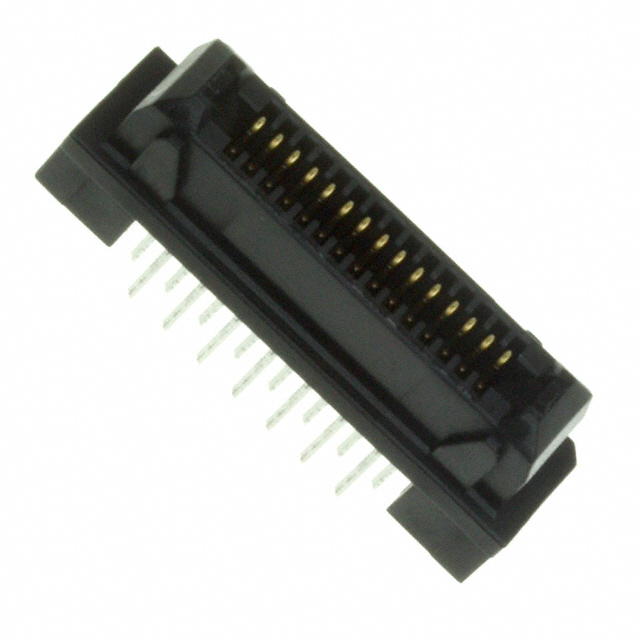

JAE Electronics TX24-30R-10ST-H1E	Gold	Board Lock	30	0.563 in	14.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	16 mm 18 mm 22 mm

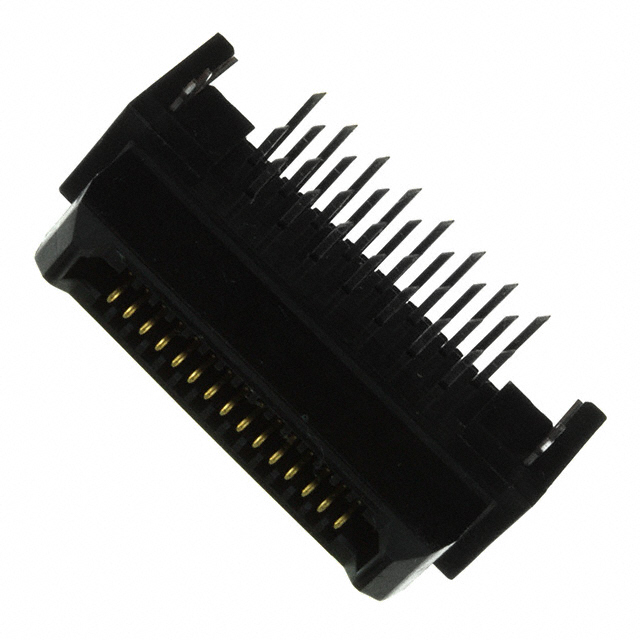

JAE Electronics TX24-30R-LT1-H1E	Gold	Board Lock	30	0.354 in	9 mm	2	0.05 in	1.27 mm	Right Angle Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin

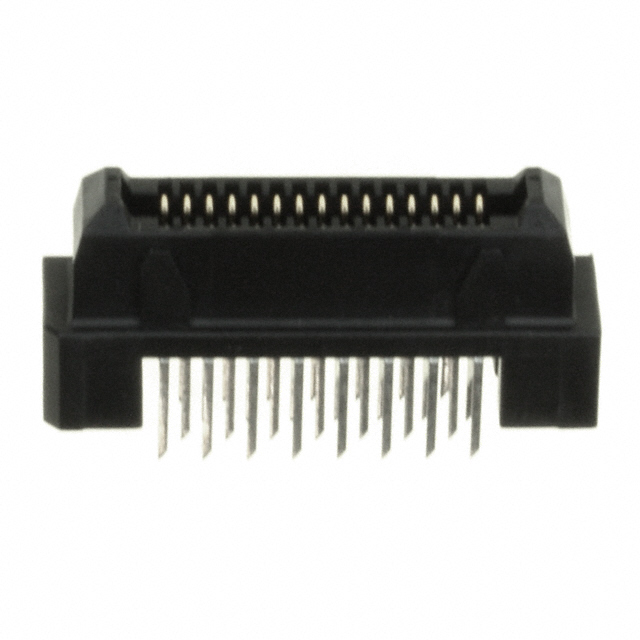

JAE Electronics TX24-30R-10ST-N1E	Gold		30	0.563 in	14.3 mm	2	0.05 in	1.27 mm	Through Hole	Receptacle Outer Shroud Contacts	0.1 Ám	4 Áin	16 mm 18 mm 22 mm
