QH19057 Series
Manufacturer: APEM Inc.
Beta
⌘K

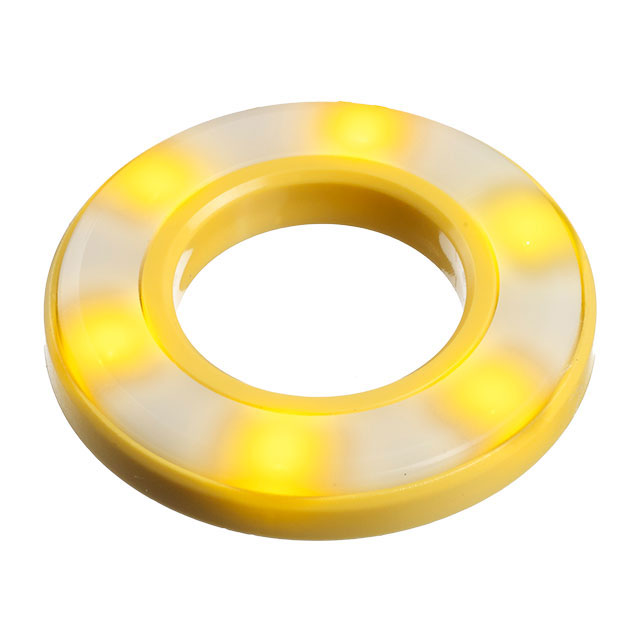

LED PANEL INDICATOR, YELLOW, 19MM, 24VDC ROHS COMPLIANT: YES
| Part | Lamp Color | Ratings | Current [Max] | Current [Min] | Lens Style | Voltage [Max] | Voltage [Min] | Termination Style | Panel Cutout Shape | Lens Transparency | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Size [diameter] | Type | Lens Color | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Yellow | DC | 20 mA | 4.2 mA | Ring with Domed Top | 26.4 V | 12 V | Wire Leads - 7.87" (200.00mm) | Round | Diffused | 19 mm | 0.748 in | 38.5 mm | LED | White | IP67 |
