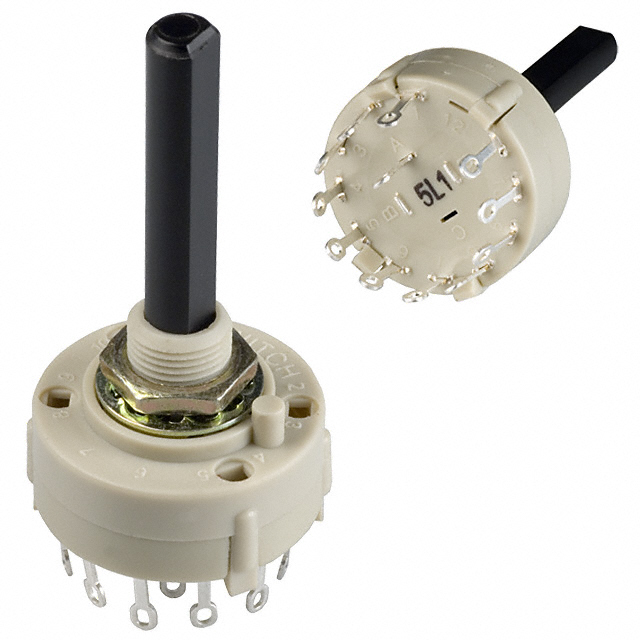

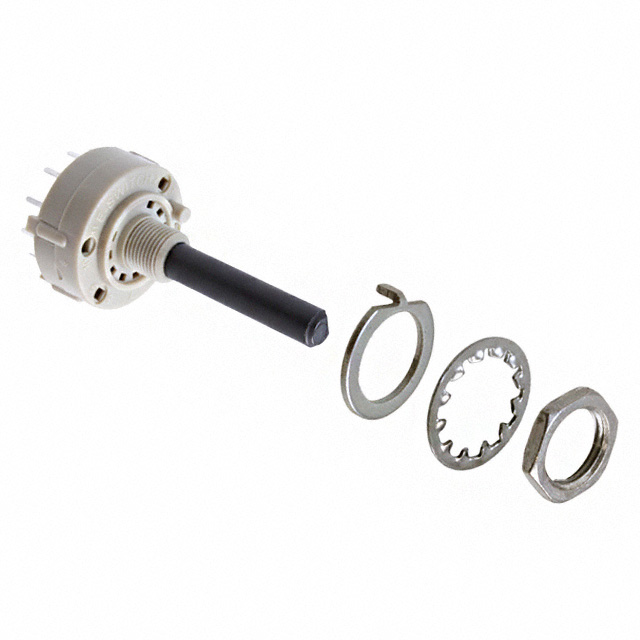

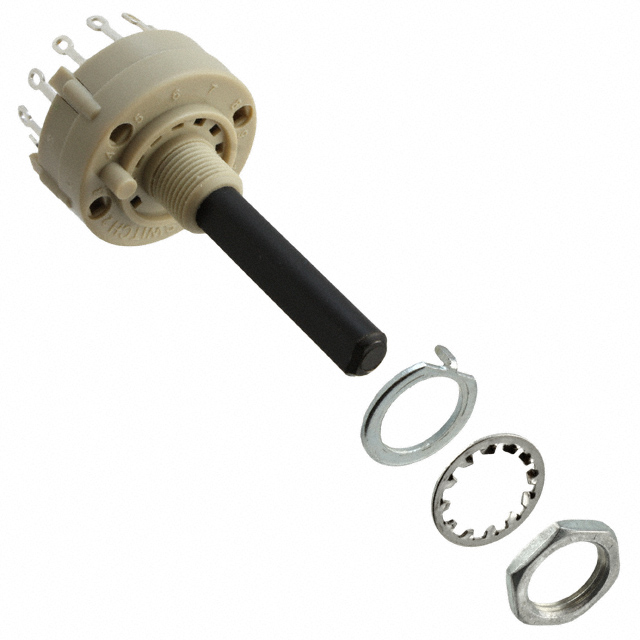

KC34A3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 4POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Circuit per Deck | Number of Positions | Angle of Throw | Number of Poles per Deck | Depth Behind Panel [z] | Termination Style | Actuator Length [x] | Current Rating (Amps) | Contact Finish | Contact Material | Index Stops | Voltage Rating - AC | Actuator Type | Mounting Type | Contact Timing | Number of Decks [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | 3P4T | 4 | 30 ° | 3 | 18.5 mm | Solder Lug | 30 mm | 350 mA | Gold | Copper Alloy | Fixed | 125 V | Flatted (6.35mm Dia) | Panel Mount | Non-Shorting (BBM) | 1 |
 E-Switch | 9.8 mm | 3P4T | 4 | 30 ° | 3 | 14.2 mm | PC Pin | 30 mm | 350 mA | Silver | Copper Alloy | Fixed | 125 V | Flatted (6.35mm Dia) | Panel Mount Through Hole | Non-Shorting (BBM) | 1 |
E-Switch | 9.8 mm | 3P4T | 4 | 30 ° | 3 | 18.5 mm | Solder Lug | 30 mm | 350 mA | Silver | Copper Alloy | Fixed | 125 V | Flatted (6.35mm Dia) | Panel Mount | Shorting (MBB) | 1 |
 E-Switch | 9.8 mm | 3P4T | 4 | 30 ° | 3 | 18.5 mm | Solder Lug | 30 mm | 350 mA | Silver | Copper Alloy | Fixed | 125 V | Flatted (6.35mm Dia) | Panel Mount | Non-Shorting (BBM) | 1 |
