787614 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

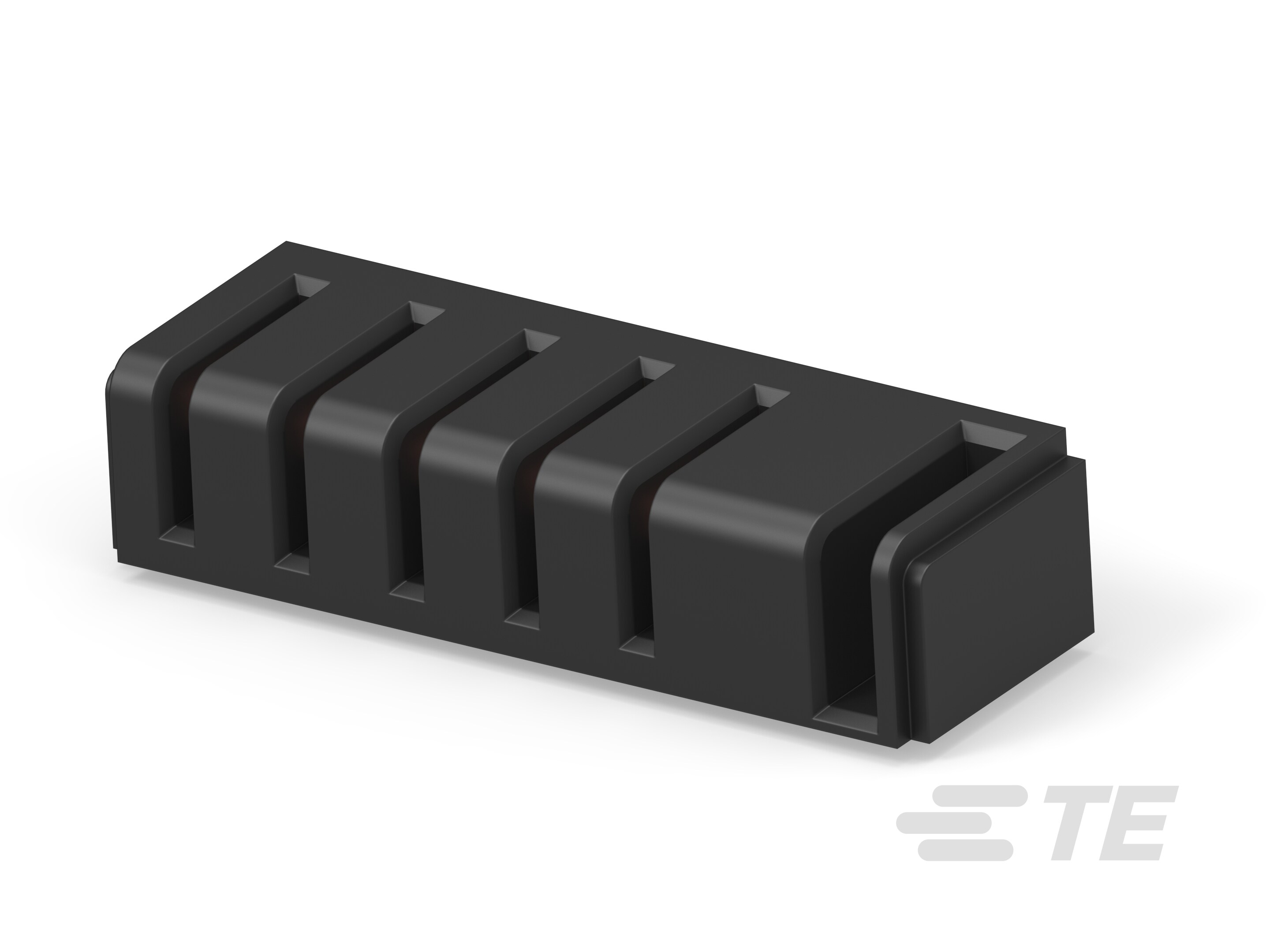

BAT INT,INS ASY W/TAB,5P,10.8V ROHS COMPLIANT: YES
| Part | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Fastening Type | Contact Finish | Current Rating (Amps) | Connector Type | Pitch | Pitch | Termination | Number of Rows | Number of Positions | Connector Style | Features | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10.8 V | Phosphor Bronze | -30 ░C | 70 °C | Polycarbonate (PC) | Push-Pull | Nickel | 7 A | Receptacle Female Blade Sockets | 0.197 in | 5 mm | Solder | 1 | 5 | 10.8V Battery | Right Hand Keying | Board Edge Cutout Surface Mount | Black |
