PTI Series
Manufacturer: Phoenix Contact
Beta
⌘K

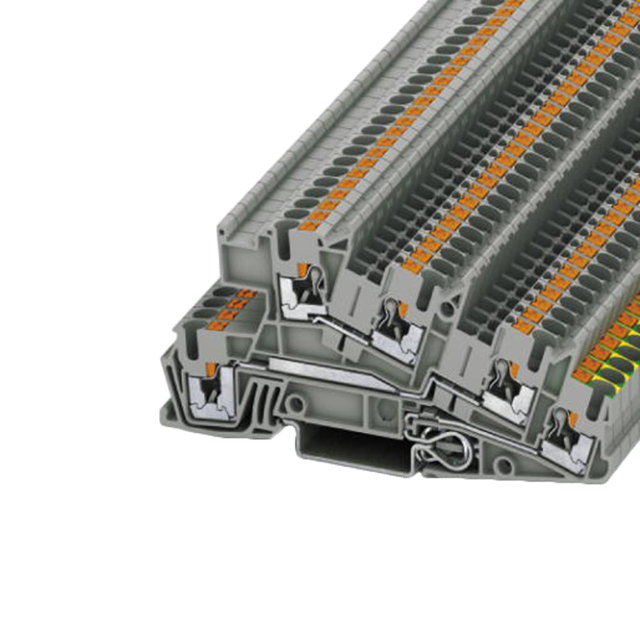

DIN RAIL TERMINAL BLOCKS PTI 4-PE/L/N
| Part | Current - IEC | Current - UL | Voltage - UL | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Color | Termination Style | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Terminal - Width [y] | Number of Positions | Voltage - IEC | Type | Number of Levels | Material - Insulation | Material Flammability Rating | Stripping Length | Disconnect Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 28 A | 27 A | 300 V | 20 AWG | 8 AWG | Gray | Push In | 0.2 mm² | 6 mm² | 6.2 mm | 5 | 400 V | Feed Through (2) Isolated | 3 | ||||
 Phoenix Contact | 24 A | 20 A | 300 V | 26 AWG | 12 AWG | Gray | Push In Spring | 0.14 mm² | 4 mm² | 5.2 mm | 5 | Feed Through (2) Isolated | 3 | Nylon Polyamide (PA) | UL94 V-0 | 10 mm | ||
 Phoenix Contact | 24 A | 20 A | 300 V | 26 AWG | 12 AWG | Gray | Push In Spring | 0.14 mm² | 4 mm² | 5.2 mm | 5 | Disconnect Feed Through Isolated | 3 | Open |
