321895 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

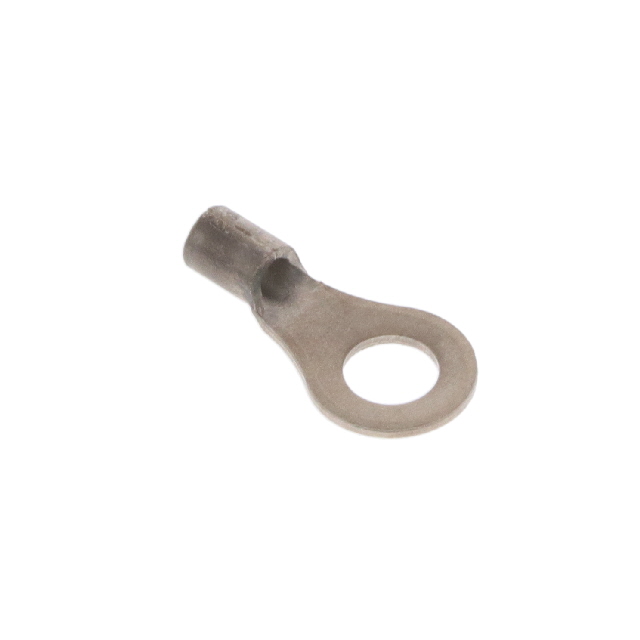

RING TONGUE TERMINAL 16-22AWG ALUMEL 15.77MM LOOSE
| Part | Termination | Stud/Tab Size | Thickness | Thickness | Features | Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Overall [x] | Length - Overall | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Wire Gauge [Max] | Wire Gauge [Min] | Color | Mounting Type | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | 8 Stud | 0.03 in | 0.76 mm | Brazed Seam High Temperature Serrated Termination | Non-Insulated | 7.92 mm | 0.312 in | 0.621 in | 15.77 mm | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 22 AWG | 16 AWG | Green | Free Hanging (In-Line) | Circular | Alumel |
