UTS1G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG MALE 7POS INLINE

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Orientation	Shell Material	Note	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Number of Positions	Position Types	Connector Type	Material Flammability Rating	Contact Size	Shell Size - Insert Width	Shell Size - Insert Length	Type	Features	Housing Color	Contact Shape	Contact Type	Fastening Type

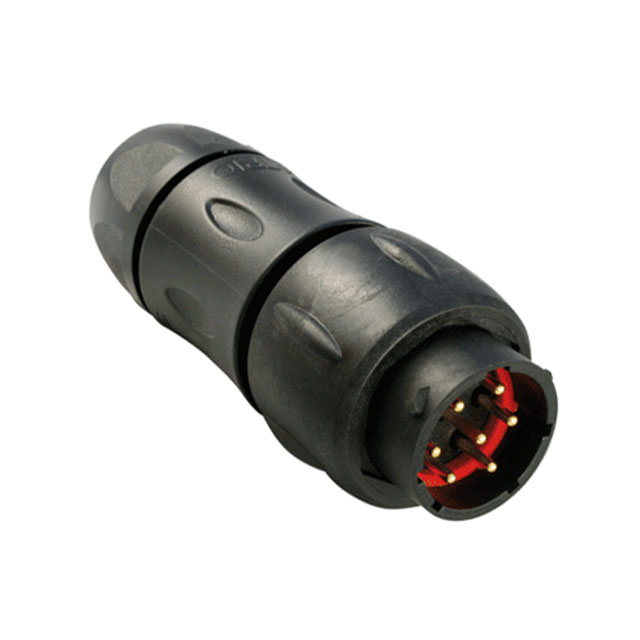

Amphenol Aerospace Operations UTS1GJC147P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	7	PE	Receptacle Housing	UL94 V-0	16 S	7 mm	14 mm	For Male Pins	Backshell	Black	Circular	Crimp	Bayonet Lock

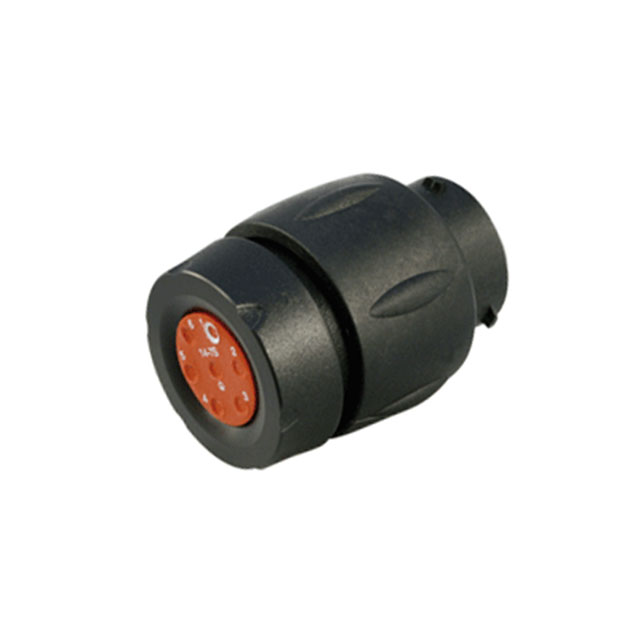

Amphenol Aerospace Operations UTS1GN147P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	7	PE	Receptacle Housing	UL94 V-0	16 S	7 mm	14 mm	For Male Pins		Black	Circular	Crimp	Bayonet Lock

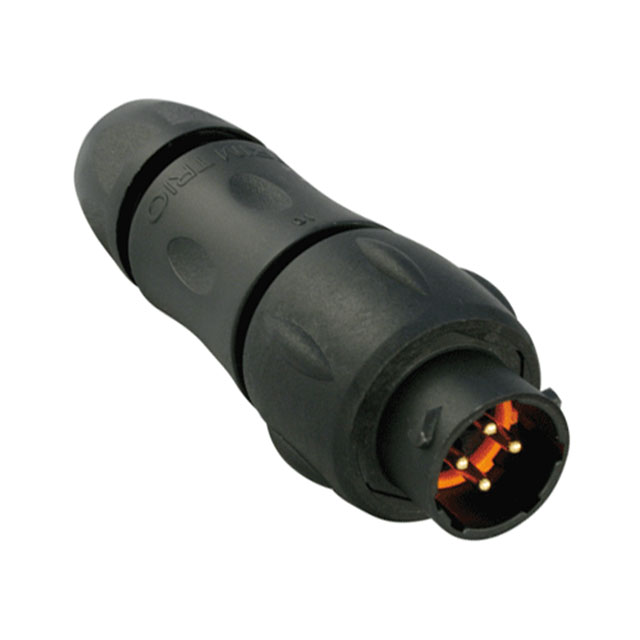

Amphenol Aerospace Operations UTS1GJC104P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	4		Receptacle Housing	UL94 V-0	16 S	4 mm	10 mm	For Male Pins	Backshell	Black	Circular	Crimp	Bayonet Lock

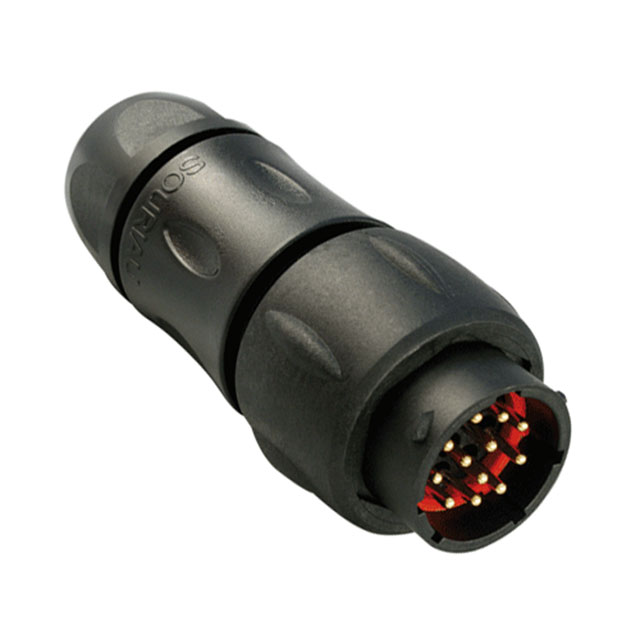

Amphenol Aerospace Operations UTS1GJC1412P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	12		Receptacle Housing	UL94 V-0	16 S	12 mm	14 mm	For Male Pins	Backshell	Black	Circular	Crimp	Bayonet Lock

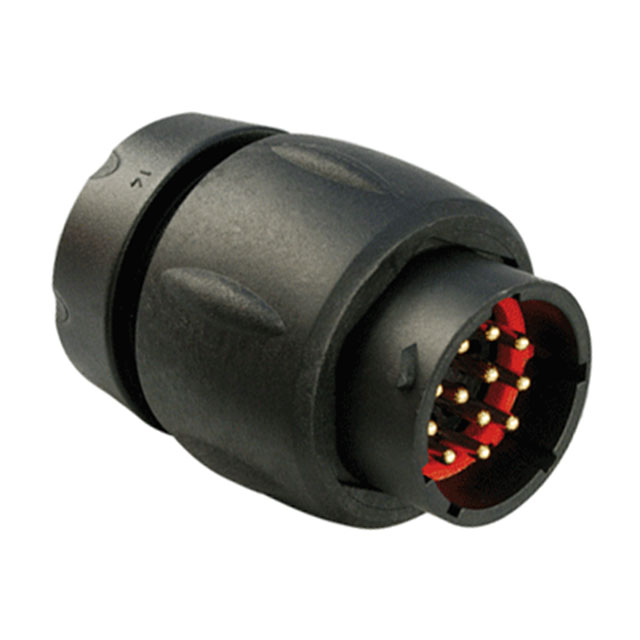

Amphenol Aerospace Operations UTS1GN1412P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	12		Receptacle Housing	UL94 V-0	16 S	12 mm	14 mm	For Male Pins		Black	Circular	Crimp	Bayonet Lock

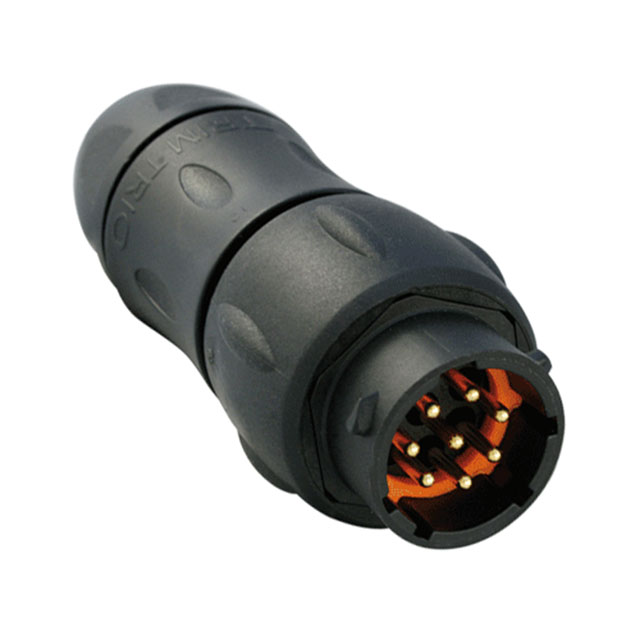

Amphenol Aerospace Operations UTS1GJC128P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	8		Receptacle Housing	UL94 V-0	16 S	8 mm	12 mm	For Male Pins	Backshell	Black	Circular	Crimp	Bayonet Lock

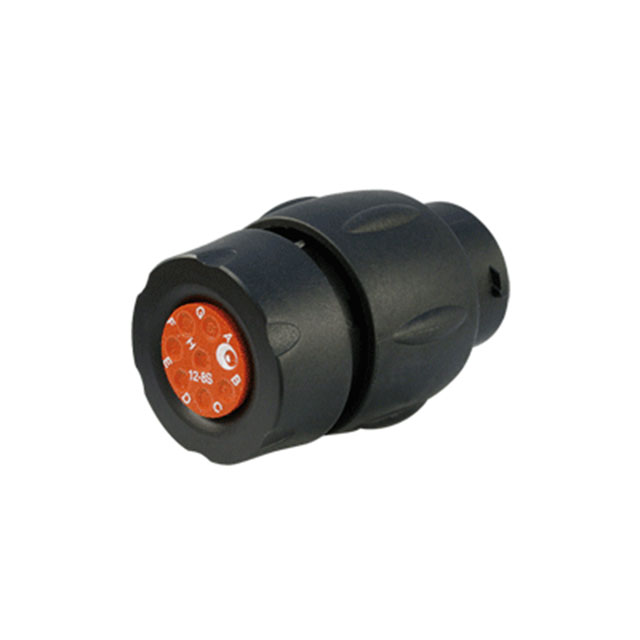

Amphenol Aerospace Operations UTS1GN128P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	8		Receptacle Housing	UL94 V-0	16 S	8 mm	12 mm	For Male Pins		Black	Circular	Crimp	Bayonet Lock

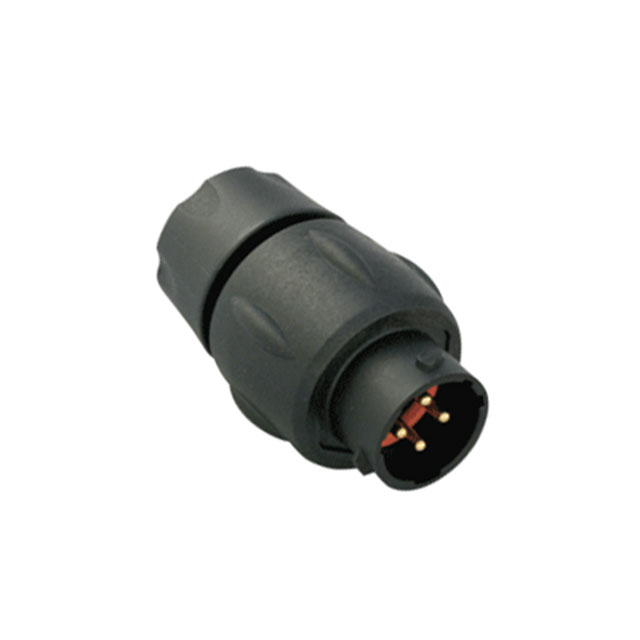

Amphenol Aerospace Operations UTS1GN104P	-40 °C	105 °C	Free Hanging (In-Line)	N (Normal)	Thermoplastic	Contacts Not Included	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	4		Receptacle Housing	UL94 V-0	16 S	4 mm	10 mm	For Male Pins		Black	Circular	Crimp	Bayonet Lock
