SMS3PH Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

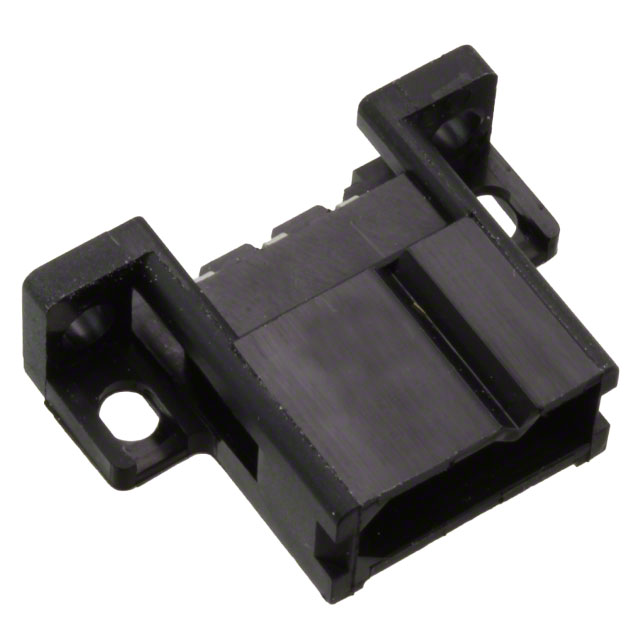

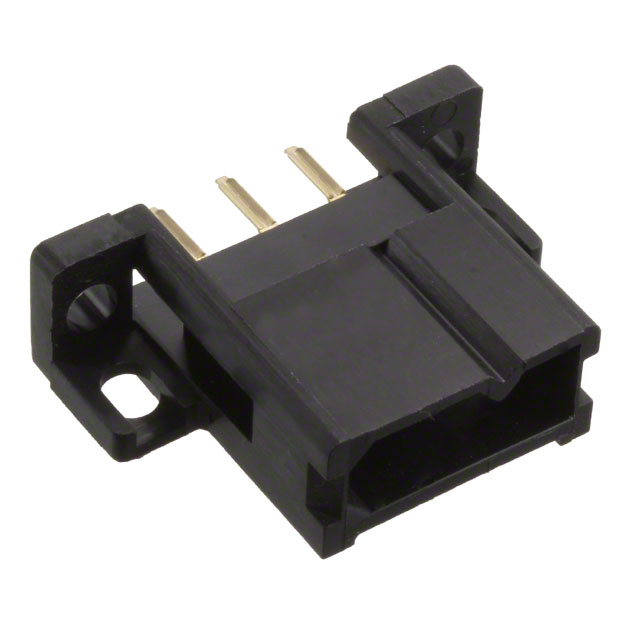

CONN HEADER R/A 3POS 5.08MM
| Part | Contact Shape | Number of Rows | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Insulation Material | Contact Material | Pitch - Mating | Contact Finish - Mating | Mounting Type | Termination | Number of Positions | Fastening Type | Contact Finish Thickness - Mating | Contact Type | Contact Length - Post | Contact Finish - Post | Features | Insulation Height | Style | Material Flammability Rating | Connector Type | Number of Positions Loaded | Shrouding | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Circular | 1 | 5 A | 125 °C | -55 °C | Glass Filled Thermoplastic | Copper Alloy | 0.2 in | Tin | Right Angle Through Hole | Solder | 3 | Push-Pull | 47.2 µin | Male Pin | 0.165 in | Tin | Mounting Flange | 0.37 in | Board Cable/Wire | UL94 V-0 | Header | All | Shrouded - 4 Wall | Black |
 Amphenol Aerospace Operations | Circular | 1 | 5 A | 105 °C | -55 °C | Glass Filled Thermoplastic | Copper Alloy | 0.2 in | Tin | Through Hole | Solder | 3 | Push-Pull | 47.2 µin | Male Pin | 0.157 in | Tin | Mounting Flange | 0.901 in | Board Cable/Wire | UL94 V-0 | Plug | All | Shrouded - 4 Wall | Black |
 Amphenol Aerospace Operations | Circular | 1 | 5 A | 125 °C | -55 °C | Glass Filled Thermoplastic | Copper Alloy | 0.2 in | Gold | Through Hole | Solder | 3 | Push-Pull | 29.5 Ąin | Male Pin | 0.157 in | Mounting Flange | 0.901 in | Board Cable/Wire | UL94 V-0 | Header | All | Shrouded - 4 Wall | Black |
