2641LH Series

Manufacturer: APEM Inc.

Catalog

SWITCH ROCKER DPST 16A 125V

Part	Electrical Life	Mounting Type	Actuator Type	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - DC	Illumination Voltage (Nominal)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Current Rating (Amps)	Voltage Rating - AC	Circuit	Approval Agency	Illumination Type, Color
APEM Inc. 2641LH/2A21300L110V3	10000 Cycles	Panel Mount Snap-In	Flat - Illuminated	Green	30 mm	22 mm	12 V	110 VAC	On-Off	85 °C	-20 ░C	No Marking	Green	Fluorescent	15 A 16 A	125 V	DPST	CSA NF UL VDE

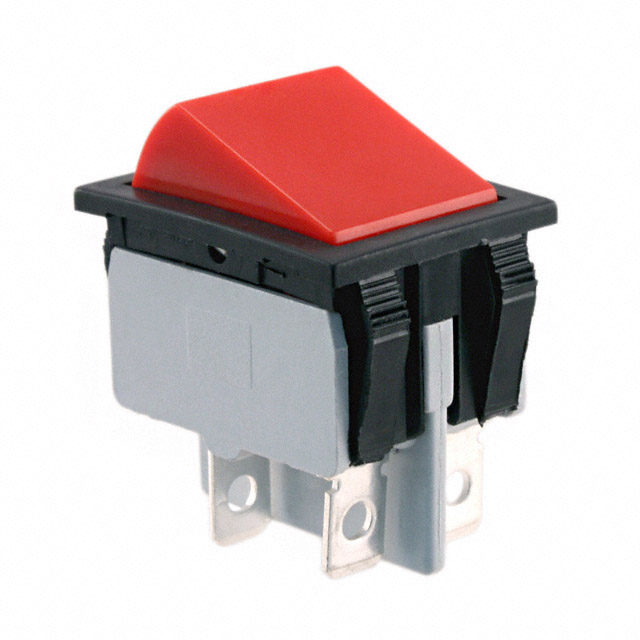

APEM Inc. 2641LH/2A216000L0	10000 Cycles	Panel Mount Snap-In	Flat	Red	30 mm	22 mm	12 V		On-Off	85 °C	-20 ░C	No Marking			15 A 16 A	125 V	DPST	CSA NF UL VDE
APEM Inc. 2641LH/2A23628L220V	10000 Cycles	Panel Mount Snap-In	Concave (Curved) - Illuminated	Red	30 mm	22 mm	12 V	220 VAC	On-Off	85 °C	-20 ░C	OFF ON Vertical			15 A 16 A	125 V	DPST	CSA NF UL VDE	Neon Red

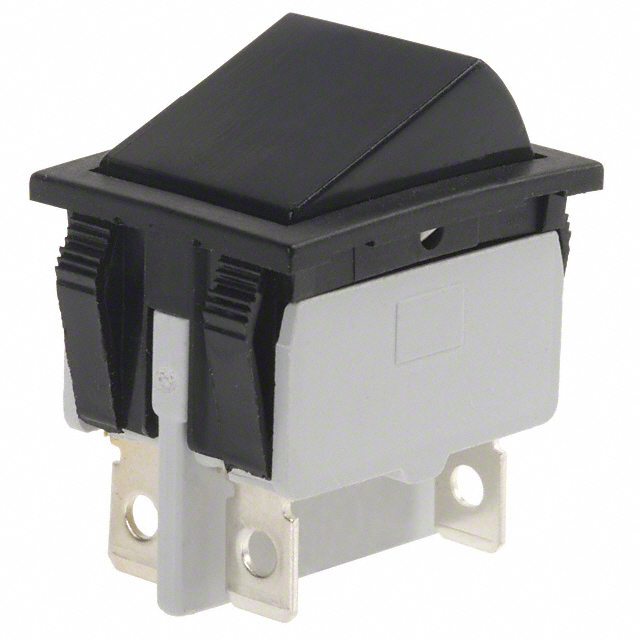

APEM Inc. 2641LH/2A212000L0	10000 Cycles	Panel Mount Snap-In	Flat	Black	30 mm	22 mm	12 V		On-Off	85 °C	-20 ░C	No Marking			15 A 16 A	125 V	DPST	CSA NF UL VDE
APEM Inc. 2641LH/2A22628L110V	10000 Cycles	Panel Mount Snap-In	Concave (Standard V) - Illuminated	Red	30 mm	22 mm	12 V	110 VAC	On-Off	85 °C	-20 ░C	OFF ON Vertical			15 A 16 A	125 V	DPST	CSA NF UL VDE	Neon Red
APEM Inc. 2641LH/2A21321L220V3	10000 Cycles	Panel Mount Snap-In	Flat - Illuminated	Green	30 mm	22 mm	12 V	220 VAC	On-Off	85 °C	-20 ░C	O -	Green	Fluorescent	15 A 16 A	125 V	DPST	CSA NF UL VDE
