AR 18-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K

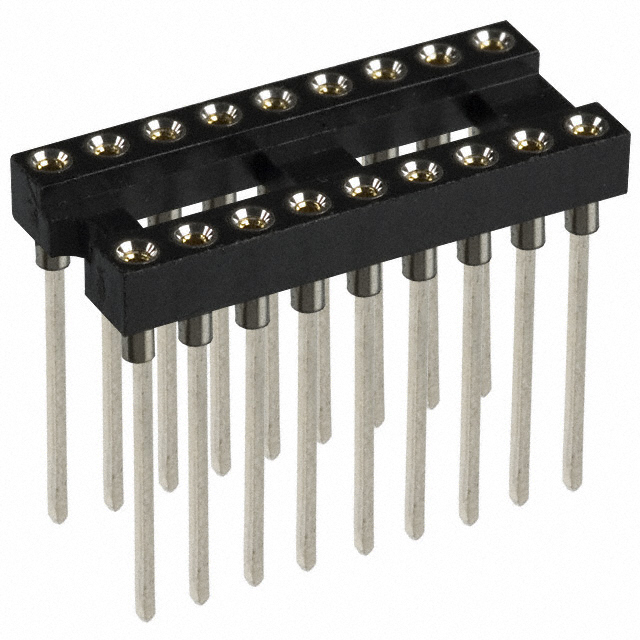

CONN IC DIP SOCKET 18POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Termination | Pitch - Post | Pitch - Post | Contact Material - Post | Contact Material - Mating | Housing Material | Number of Positions or Pins (Grid) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Type | Type | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 4 mOhm | UL94 V-0 | 3 A | Wire Wrap | 0.1 in | 2.54 mm | Beryllium Copper | Beryllium Copper | Polyester Thermoplastic | 18 | -40 C | 105 ░C | Gold | 0.1 " | 2.54 mm | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | Through Hole | Open Frame | Tin |
