TPS56C215 Series

3.8-V to 17-V, 12-A synchronous SWIFT™ buck converter with D-CAP3 control

Catalog

3.8-V to 17-V, 12-A synchronous SWIFT™ buck converter with D-CAP3 control

Part	Voltage - Output (Max) [Max]	Synchronous Rectifier	Mounting Type	Frequency - Switching	Output Type	Package / Case	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Function	Voltage - Output (Min/Fixed)	Output Configuration	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Topology	Current - Output	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]

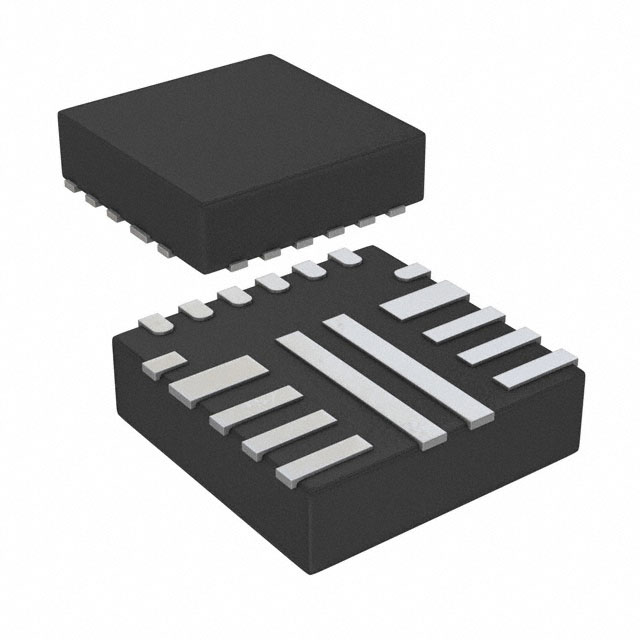

Texas Instruments TPS56C215RNNR	5.5 V		Surface Mount	1.2 MHz 400 kHz 800 kHz	Adjustable	18-PowerVFQFN	1	-40 °C	125 ¯C	Step-Down	0.6 V	Positive	18-VQFN-HR	3.5	3.5	Buck	12 A	17 V	4.5 V
Texas Instruments TPS56C215RNNT	5.5 V		Surface Mount	1.2 MHz 400 kHz 800 kHz	Adjustable	18-PowerVFQFN	1	-40 °C	125 ¯C	Step-Down	0.6 V	Positive	18-VQFN-HR	3.5	3.5	Buck	12 A	17 V	4.5 V

Catalog

3.8-V to 17-V, 12-A synchronous SWIFT™ buck converter with D-CAP3 control

Key Features

• Integrated 13.5mΩ and 4.5mΩ MOSFETsSupports 12A continuous IOUT4.5V start-up without external 5.0V bias0.6V ±-1% reference voltage across full temperature range0.6V to 5.5V output voltage rangeSupports ceramic output capacitorsD-CAP3™ control mode for fast transient responseSelectable forced continuous conduction mode (FCCM) for tight output voltage ripple or auto-skipping Eco-mode for high light-load efficiencySelectable FSW of 400kHz, 800kHz, and 1.2MHzMonotonic start-up into prebiased outputsTwo adjustable current limit settings with hiccup re-startOptional external 5V bias for enhanced efficiencyAdjustable soft start with a default 1ms soft-start time–40°C to 150°C operating junction temperatureSmall 3.5mm × 3.5mm HotRod™ QFN packagePin-to-pin compatible with 8ATPS568215Supported in the WEBENCH design toolIntegrated 13.5mΩ and 4.5mΩ MOSFETsSupports 12A continuous IOUT4.5V start-up without external 5.0V bias0.6V ±-1% reference voltage across full temperature range0.6V to 5.5V output voltage rangeSupports ceramic output capacitorsD-CAP3™ control mode for fast transient responseSelectable forced continuous conduction mode (FCCM) for tight output voltage ripple or auto-skipping Eco-mode for high light-load efficiencySelectable FSW of 400kHz, 800kHz, and 1.2MHzMonotonic start-up into prebiased outputsTwo adjustable current limit settings with hiccup re-startOptional external 5V bias for enhanced efficiencyAdjustable soft start with a default 1ms soft-start time–40°C to 150°C operating junction temperatureSmall 3.5mm × 3.5mm HotRod™ QFN packagePin-to-pin compatible with 8ATPS568215Supported in the WEBENCH design tool

Description

The TPS56C215 is a small monolithic 12A synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and offers ease-of-use with minimum external component count for space-conscious power systems. Competitive features include a very accurate reference voltage, fast load transient response, auto-skip mode operation for light load efficiency, adjustable current limit and no requirement for external compensation. A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS56C215 is available in a thermally enhanced, 18-pin, HotRod QFN package and is designed to operate from –40°C to 150°C junction temperature. The TPS56C215 is a small monolithic 12A synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and offers ease-of-use with minimum external component count for space-conscious power systems. Competitive features include a very accurate reference voltage, fast load transient response, auto-skip mode operation for light load efficiency, adjustable current limit and no requirement for external compensation. A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS56C215 is available in a thermally enhanced, 18-pin, HotRod QFN package and is designed to operate from –40°C to 150°C junction temperature.
