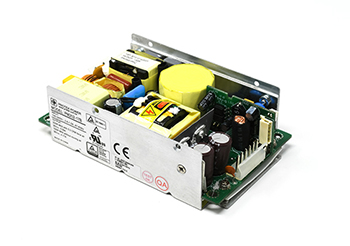

PM60 Series

Enclosed Power Supply 24V 64 Watt

Manufacturer: TT Electronics/BI

Catalog

Enclosed Power Supply 24V 64 Watt

Catalog

Enclosed Power Supply 24V 64 Watt

Part	Standard Number	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Applications	Type	Voltage - Isolation	Efficiency	Features	Approval Agency	Mounting Type

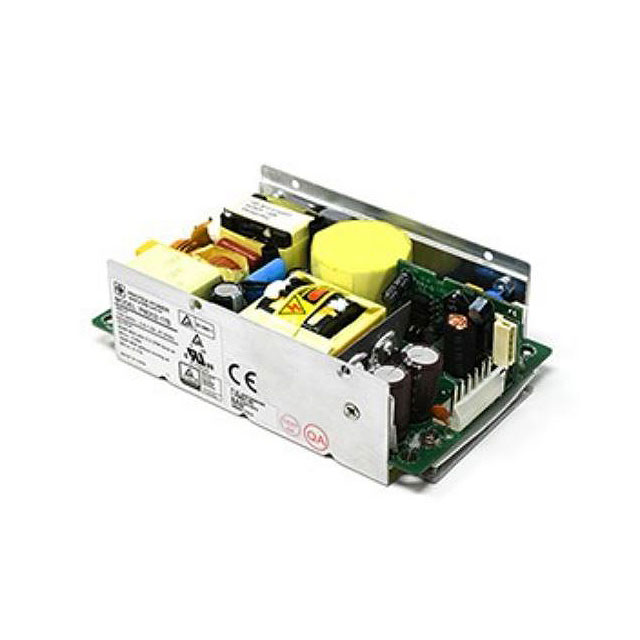

TT Electronics/BI PM60-12A	60601-1 60950-1 62368-1	1	-30 °C	70 °C	101.6 mm	50.8 mm	1.18 in	4 "	30 mm	2 in	5 A	60 W	90 VAC 120 VDC	264 VAC 370 VDC	12 V	ITE (Commercial) Medical	Open Frame	4000 V	88 %	Adjustable Output Universal Input	cTUVus cURus TUV	Chassis Mount
TT Electronics/BI PM60-10A	60601-1; 62368-1	1	-10 °C	70 °C	101.6 mm	50.8 mm	1.18 in	4 "	30 mm	2 in	11 A	55 W	90 VAC	264 VAC	5 V	ITE (Commercial) Medical	Open Frame		88 %	DC Input Capable Universal Input	CE cTUVus cURus TUV	Chassis Mount
TT Electronics/BI PM60-14A	60601-1; 62368-1	1	-10 °C	70 °C	101.6 mm	50.8 mm	1.18 in	4 "	30 mm	2 in	2.7 A		90 VAC	264 VAC	24 V	ITE (Commercial) Medical	Open Frame		88 %	DC Input Capable Universal Input	CE cTUVus cURus TUV	Chassis Mount
TT Electronics/BI PM60-13A	60601-1; 62368-1	1	-10 °C	70 °C	101.6 mm	50.8 mm	1.18 in	4 "	30 mm	2 in	4.3 A		90 VAC	264 VAC	15 V	ITE (Commercial) Medical	Open Frame		88 %	DC Input Capable Universal Input	CE cTUVus cURus TUV	Chassis Mount
TT Electronics/BI PM60-18A	60601-1; 62368-1	1	-10 °C	70 °C	101.6 mm	50.8 mm	1.18 in	4 "	30 mm	2 in	1.35 A	64 W	90 VAC	264 VAC	48 V	ITE (Commercial) Medical	Open Frame		88 %	DC Input Capable Standby Output Universal Input	CE cTUVus cURus TUV	Chassis Mount
