1586491 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

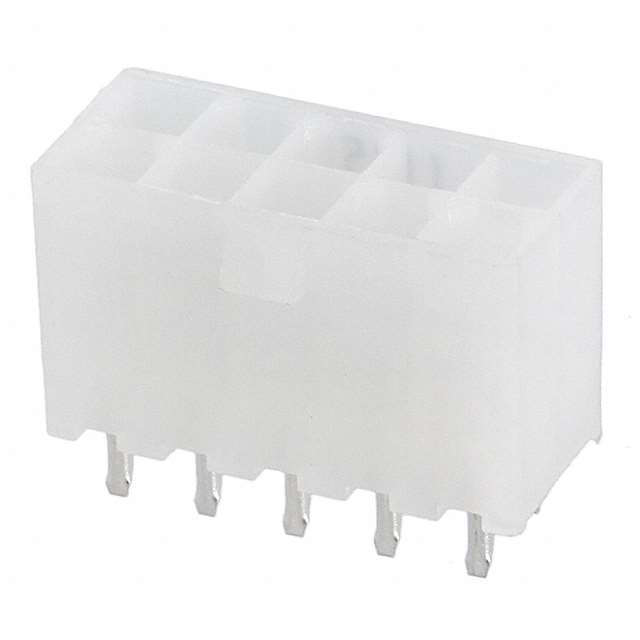

CONN HEADER VERT 10POS 4.2MM
| Part | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Material | Contact Finish - Post | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Voltage Rating | Contact Material | Contact Type | Material Flammability Rating | Insulation Color | Contact Shape | Connector Type | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] | Style | Number of Positions Loaded | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | -55 C | 105 ░C | Solder | Nylon Polyamide (PA) | Tin | Locking Ramp | 0.165 in | 4.2 mm | Through Hole | 600 VAC | Copper Alloy | Male Pin | UL94 V-2 | Natural | Square | Header | 10 | 0.165 in | 4.2 mm | 0.138 in | 3.5 mm | 118.1 µin | 3 µm | 12.8 mm | 0.504 " | Board to Board Cable | All | Shrouded - 4 Wall |
