SL-B8T1 Series

Catalog

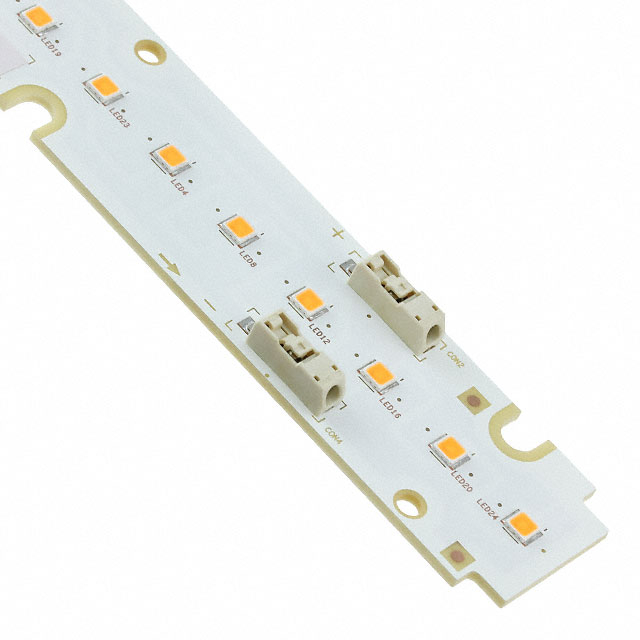

LED MOD INFLUXS02 LNR STR 4000K

Part	CRI (Color Rendering Index)	Temperature - Test	Height [z]	CCT (K)	Configuration	Type	Viewing Angle	Lens Type	Lumens/Watt @ Current - Test	Current - Max [Max]	Features	Current - Test	Color	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)
Samsung Semiconductor, Inc. SL-B8T1N40L1WW	80	65 °C	5.9 mm	4000 K	Linear Light Strip	LED Module	115 °	Flat	136 lm/W	1.38 A	With Connector	1.38 A	Neutral White	2270 lm	23.7 mm	279.6 mm	12.1 V
Samsung Semiconductor, Inc. SL-B8T1N00L1WW	80	65 °C	5.9 mm	4000 K	Linear Light Strip	LED Module	115 °	Flat	136 lm/W	1.15 A	With Connector	1.15 A	Neutral White	1420 lm	23.7 mm	279.6 mm	9.1 V

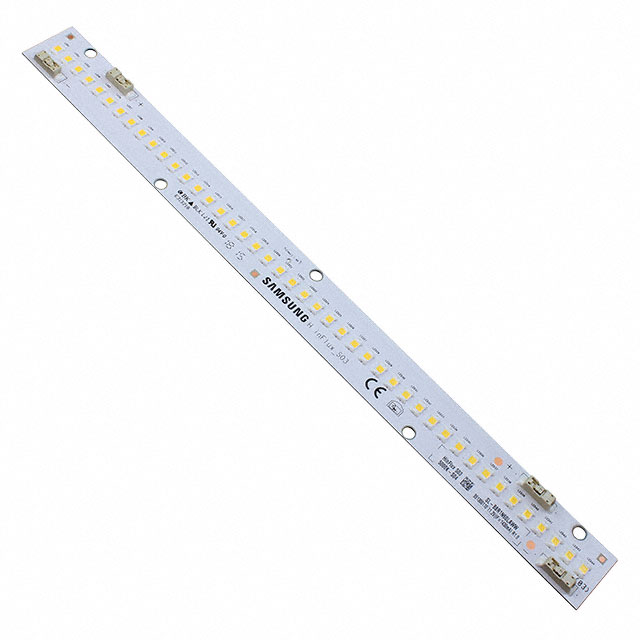

Samsung Semiconductor, Inc. SL-B8T1N60LAWW	80	55 °C	5.2 mm	4000 K	Linear Light Strip	LED Module	118 °	Flat	191 lm/W	2.2 A		1.43 A	Neutral White	3060 lm	24 mm	280 mm	11.2 V
