EE-SX951 Series

Catalog

SENS OPT SLOT NPN MOD 1M ROBOTIC

Part	Type	Current - DC Forward (If) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Current - Collector (Ic) (Max) [Max]	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Output Configuration

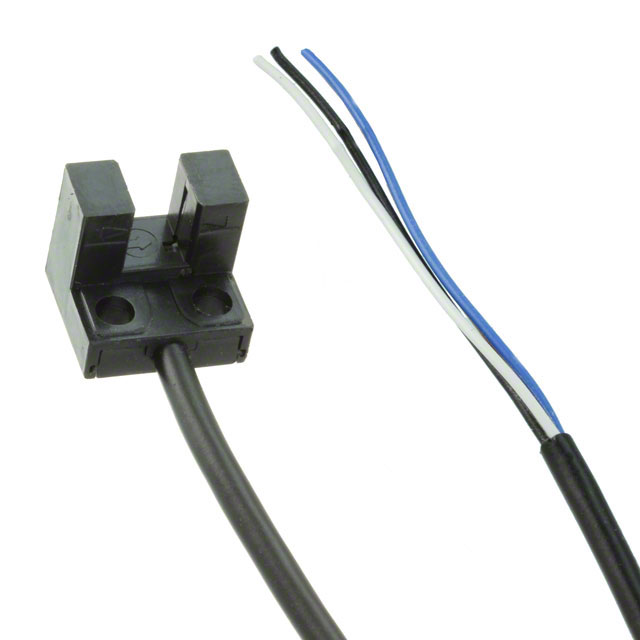

Omron Automation and Safety EE-SX951-R 1M	Amplified	50 mA	24 V	Module Slot Type Wire Leads	Chassis Mount	15 mA	5 mm	0.197 in	55 °C	-25 °C	Through-Beam
Omron Automation and Safety EE-SX951P-R 1M	Amplified	50 mA	24 V	Module Slot Type Wire Leads	Chassis Mount	15 mA	5 mm	0.197 in	55 °C	-25 °C	Through-Beam	PNP - Dark-ON/Light-ON - Selectable

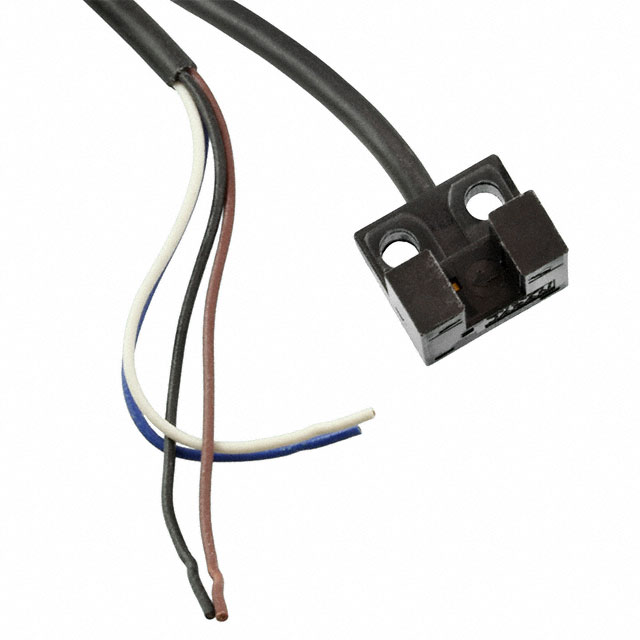

Omron Automation and Safety EE-SX951P-W 1M	Amplified	50 mA	24 V	Module Slot Type Wire Leads	Chassis Mount	15 mA	5 mm	0.197 in	55 °C	-25 °C	Through-Beam	PNP - Dark-ON/Light-ON - Selectable

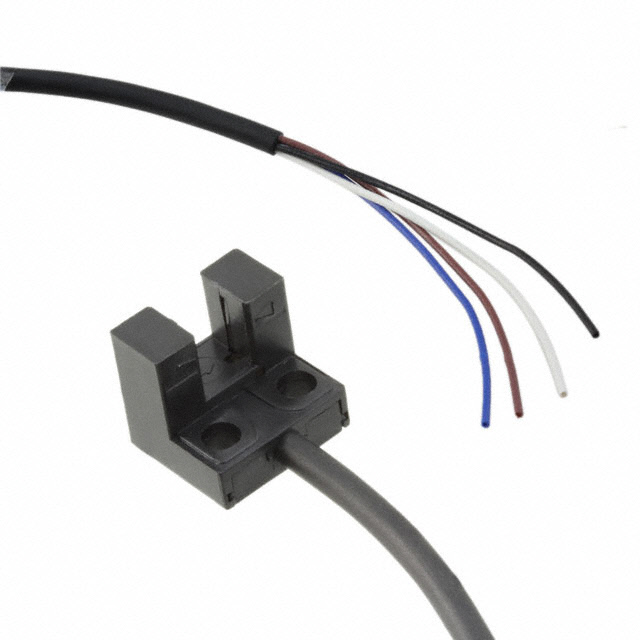

Omron Automation and Safety EE-SX951-W 3M	Amplified	50 mA	24 V	Module Slot Type Wire Leads	Chassis Mount	15 mA	5 mm	0.197 in	55 °C	-25 °C	Through-Beam
