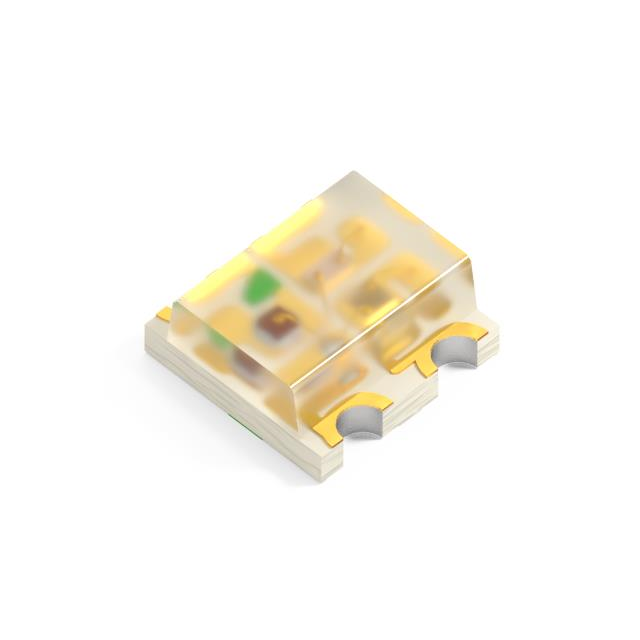

XZMDKDGCBD110 Series
Manufacturer: SunLED
Beta
⌘K
LED RGB CLEAR SMD
| Part | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Color | Package / Case | Wavelength - Dominant | Height (Max) [z] | Lens Style | Supplier Device Package | Current - Test | Lens Size [y] | Lens Size [x] | Configuration | Viewing Angle | Lens Color | Lens Transparency | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 69 mcd | 297 mcd | 79 mcd | Surface Mount | 1.6 mm | 1.6 mm | Blue Green Red | 4-SMD No Lead | 465 nm 525 nm 630 nm | 0.7 mm | Rectangle with Flat Top | SMD | 20mA Blue 20mA Green 20mA Red | 1.6 mm | 1.1 mm | Common Anode | 120 ° | Colorless | Clear | 645 nm | 515 nm | 460 nm |
