AQY210 Series

Catalog

MOSFET RELAY, SPST-NO, 0.12A, 350V, THT ROHS COMPLIANT: YES

Part	Supplier Device Package	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Package / Case	Package / Case	Output Type	Load Current	Voltage - Input	On-State Resistance (Max) [Max]	Package / Case
Panasonic Electronic Components AQY210HL	4-DIP	Through Hole	BSI cURus	85 °C	-40 C	PC Pin	350 V	0 V	0.3 in	4-DIP	7.62 mm	AC DC	120 mA	1.14 VDC	25 Ohms
Panasonic Electronic Components AQY210SZ	4-SOP	Surface Mount	BSI cURus	85 °C	-40 C	Gull Wing	350 V	0 V		4-SOP (0.173" 4.40mm)		AC DC	120 mA	1.14 VDC	25 Ohms
Panasonic Electronic Components AQY210HLA	4-SMD	Surface Mount	BSI cURus	85 °C	-40 C	Gull Wing	350 V	0 V		4-SMD	0.3 in	AC DC	120 mA	1.14 VDC	25 Ohms	7.62 mm
Panasonic Electronic Components AQY210S1Y	4-SOP	Surface Mount	BSI cURus	85 °C	-40 C	Gull Wing	350 V	0 V		4-SOP (0.173" 4.40mm)		AC DC	120 mA	1.14 VDC	25 Ohms
Panasonic Electronic Components AQY210EHAZ	4-SMD	Surface Mount	BSI cURus	85 °C	-40 C	Gull Wing	350 V	0 V		4-SMD	0.3 in	AC DC	130 mA	1.14 VDC	25 Ohms	7.62 mm
Panasonic Electronic Components AQY210LSX	4-SOP	Surface Mount	BSI cURus	85 °C	-40 C	Gull Wing	350 V	0 V		4-SOP (0.173" 4.40mm)		AC DC	120 mA	1.14 VDC	25 Ohms
Panasonic Electronic Components AQY210KSZ

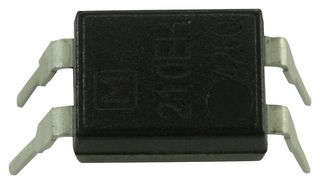

Panasonic Electronic Components AQY210EH	4-DIP	Through Hole	BSI cURus	85 °C	-40 C	PC Pin	350 V	0 V	0.3 in	4-DIP	7.62 mm	AC DC	130 mA	1.14 VDC	25 Ohms
Panasonic Electronic Components AQY210KSZ	4-SOP	Surface Mount	BSI cURus	85 °C	-40 C	Gull Wing	350 V	0 V		4-SOP (0.173" 4.40mm)		AC DC	120 mA	1.13 VDC	35 Ohm
