RCD-24PL Series

Catalog

LED POWER SUPPLIES 0.6A LED-DRIVER REG 4.5-36VIN 2-35VOUT

Part	Mounting Type	Topology	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Dimming	Power (Watts)	Efficiency	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Number of Outputs	Type	Features	Current - Output (Max) [Max]	Package / Case	Approval Agency
Recom Power RCD-24-0.60/PL/A	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	21 W	96 %	2 V	35 V	4.5 V	-40 C	75 ░C	36 V	1	Constant Current	OTP Remote On/Off SCP	600 mA	6-SMD	EN

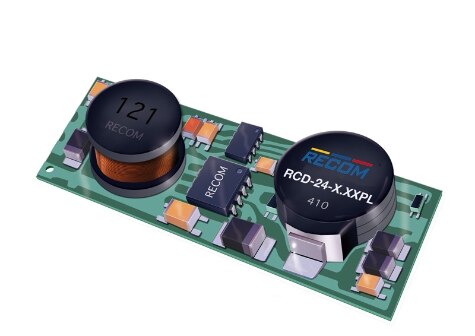

Recom Power RCD-24-0.35/PL/A	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	12 W	96 %	2 V	35 V	4.5 V	-40 C	85 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	350 mA	6-SMD	EN
Recom Power RCD-24-0.60/PL/B	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	21 W	96 %	2 V	35 V	4.5 V	-40 C	75 ░C	36 V	1	Constant Current	OTP Remote On/Off SCP	600 mA	6-SMD	EN
Recom Power RCD-24-0.50/PL/A-R	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	18 W	96 %	2 V	35 V	4.5 V	-40 C	80 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	500 mA	6-SMD	EN
Recom Power RCD-24-1.00/PL/A-R	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	32 W	96 %	2 V	32 VDC	6 V	-40 C	65 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	1 A	6-SMD	EN
Recom Power RCD-24-0.50/PL/A	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	18 W	96 %	2 V	35 V	4.5 V	-40 C	80 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	500 mA	6-SMD	EN
Recom Power RCD-24-0.50/PL/B	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	18 W	96 %	2 V	35 V	4.5 V	-40 C	80 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	500 mA	6-SMD	EN
Recom Power RCD-24-0.35/PL/B	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	12 W	96 %	2 V	35 V	4.5 V	-40 C	85 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	350 mA	6-SMD	EN
Recom Power RCD-24-0.60/PL/A-R	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	21 W	96 %	2 V	35 V	4.5 V	-40 C	75 ░C	36 V	1	Constant Current	OTP Remote On/Off SCP	600 mA	6-SMD	EN
Recom Power RCD-24-1.00/PL/A	Surface Mount	Buck	31 mm	1.22 in	6.6 mm	11.4 mm	0.45 in	0.26 in	Analog PWM	32 W	96 %	2 V	32 VDC	6 V	-40 C	65 °C	36 V	1	Constant Current	OTP Remote On/Off SCP	1 A	6-SMD	EN
