MEZDPD3603 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

DC DC CONVERTER

Part	Type	Applications	Number of Outputs	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package	Efficiency	Voltage - Output 1
Monolithic Power Systems Inc. MEZDPD3603A-85BA	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 "	9 mm	0.63 "	23 mm	16 mm	Through Hole	12-DIP Module	85 °C	-40 C	4.5 V	36 V

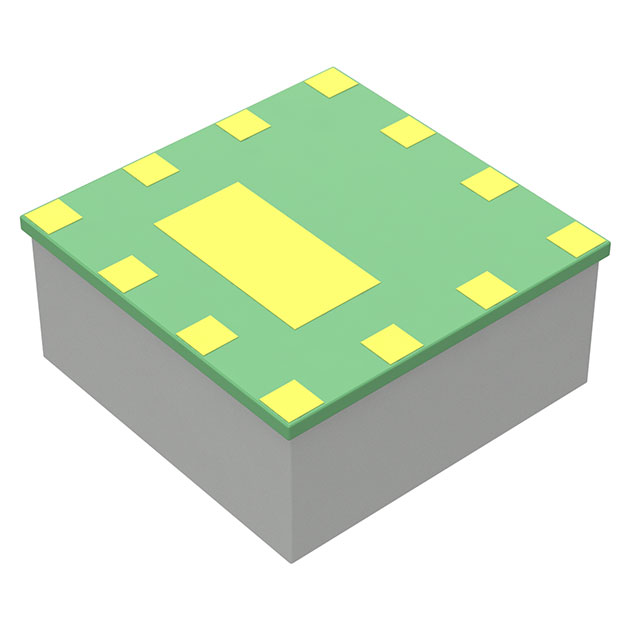

Monolithic Power Systems Inc. MEZDPD3603AS-84F7	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	6.2 mm	0.59 in	15 mm	15 mm	Surface Mount	13-PowerBLGA Module	85 °C	-40 C	20 V	28 V	1 A	13-LGA (15x15)	93.2 %	5 V
Monolithic Power Systems Inc. MEZDPD3603AS-84E8	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	6.2 mm	0.59 in	15 mm	15 mm	Surface Mount	13-PowerBLGA Module	85 °C	-40 C	9 V	15 V	2 A	13-LGA (15x15)	93.2 %	3.3 V
Monolithic Power Systems Inc. MEZDPD3603A-84E0	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 "	9 mm	0.63 "	23 mm	16 mm	Through Hole	12-DIP Module	85 °C	-40 C	20 V	28 V	3 A			12 V
Monolithic Power Systems Inc. MEZDPD3603AS-84F8	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	6.2 mm	0.59 in	15 mm	15 mm	Surface Mount	13-PowerBLGA Module	85 °C	-40 C	20 V	28 V	1 A	13-LGA (15x15)	93.2 %	12 V
Monolithic Power Systems Inc. MEZDPD3603A-8544	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 "	9 mm	0.63 "	23 mm	16 mm	Through Hole	12-DIP Module	85 °C	-40 C	4.5 V	36 V
Monolithic Power Systems Inc. MEZDPD3603A-84EC	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 "	9 mm	0.63 "	23 mm	16 mm	Through Hole	12-DIP Module	85 °C	-40 C	20 V	28 V	2 A			12 V
Monolithic Power Systems Inc. MEZDPD3603AS-84F4	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP SCP	0.24 in	0.59 in	6.2 mm	0.59 in	15 mm	15 mm	Surface Mount	13-PowerBLGA Module	85 °C	-40 C	9 V	15 V	1 A	13-LGA (15x15)	93.2 %	3.3 V
Monolithic Power Systems Inc. MEZDPD3603A-84DC	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 "	9 mm	0.63 "	23 mm	16 mm	Through Hole	12-DIP Module	85 °C	-40 C	9 V	15 V	3 A			3.3 V

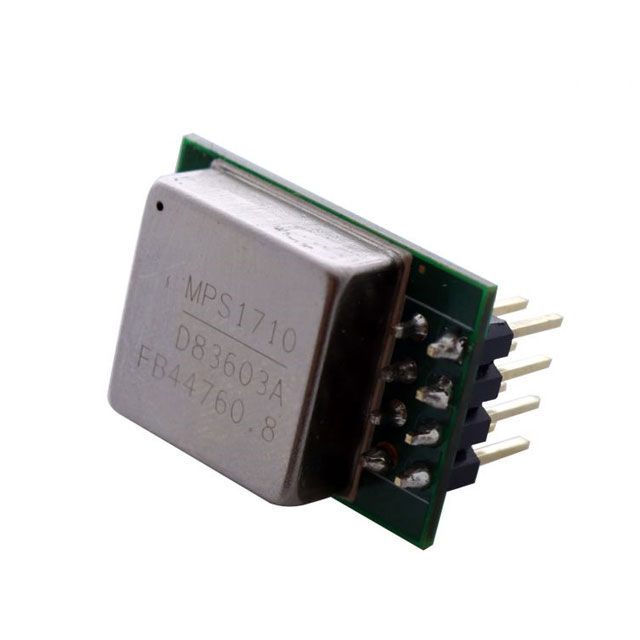

Monolithic Power Systems Inc. MEZDPD3603A-0001	Non-Isolated PoL Module	ITE (Commercial)	1	OCP OTP OVP Remote On/Off SCP	0.35 in	0.91 "	9 mm	0.63 "	23 mm	16 mm	Through Hole	12-DIP Module	85 °C	-40 C	4.5 V	36 V	3 A		90 %	5 V
