854A005 Series
Manufacturer: NorComp Inc.
Beta
⌘K

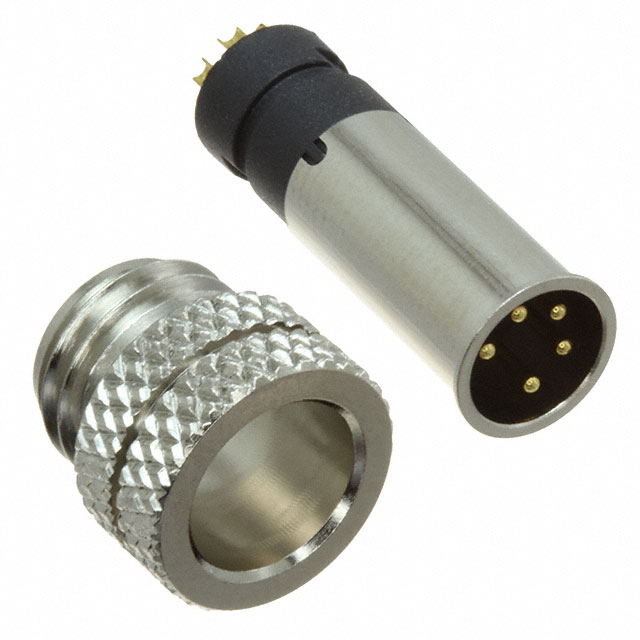

CONN RCPT MALE 5P GOLD SLDR CUP
| Part | Insert Material | Contact Material | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Positions | Mounting Type | Shell Finish | Contact Finish - Mating | Ingress Protection | Fastening Type | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Connector Type | Material Flammability Rating | Color | Voltage Rating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | Industrial Medical | 0.25 µm | 10 µin | 1.5 A | 5 | Free Hanging (In-Line) | Nickel | Gold | IP67 - Dust Tight Waterproof | Threaded | M8-5 | 85 °C | -40 C | Brass | Receptacle Male Pins | UL94 V-0 | Black Silver | 30 VDC | Metal |
