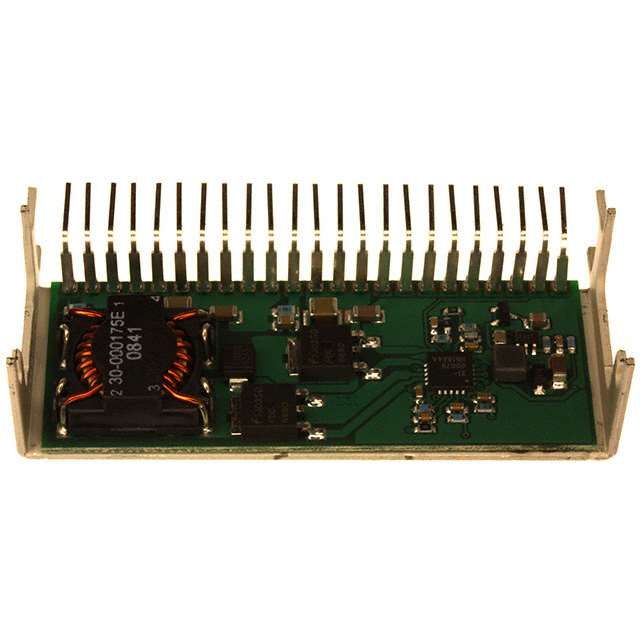

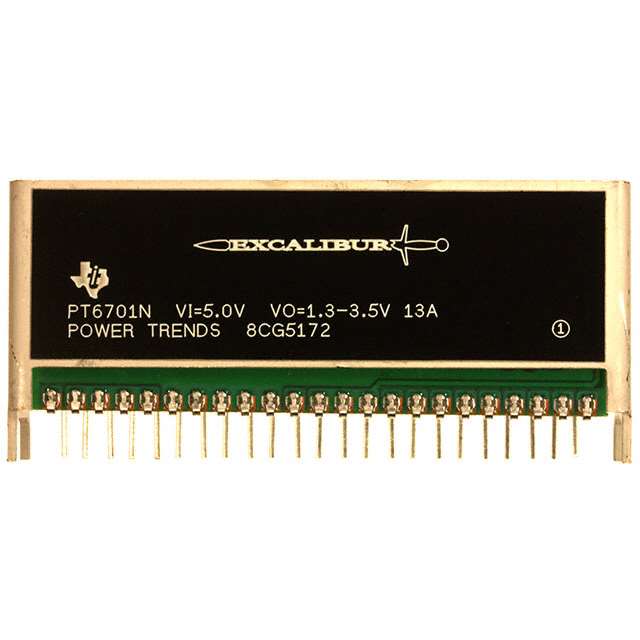

PT6701 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 1.3-3.5V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Mounting Type | Efficiency | Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Applications | Voltage - Input (Min) [Min] | Package / Case | Features | Number of Outputs | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 85 °C | -40 °C | 13 A | Surface Mount | 91 % | Non-Isolated PoL Module | 1.3 V | 3.5 V | 30.2 mm | 12.7 mm | 1.19 " | 0.5 in | 2.58 " | 65.5 mm | ITE (Commercial) | 4.5 V | 23-SMD Module | OVP Remote On/Off SCP | 1 | 5.5 V |
 Texas Instruments | 85 °C | -40 °C | 13 A | Through Hole Right Angle | 91 % | Non-Isolated PoL Module | 1.3 V | 3.5 V | ITE (Commercial) | 4.5 V | 23-SIP Module | 1 | 5.5 V | |||||||
Texas Instruments | 85 °C | -40 °C | 13 A | Through Hole | 91 % | Non-Isolated PoL Module | 1.3 V | 3.5 V | ITE (Commercial) | 4.5 V | 23-SIP Module | 1 | 5.5 V |
