9495 Series
Manufacturer: Belden Inc.
Beta
⌘K

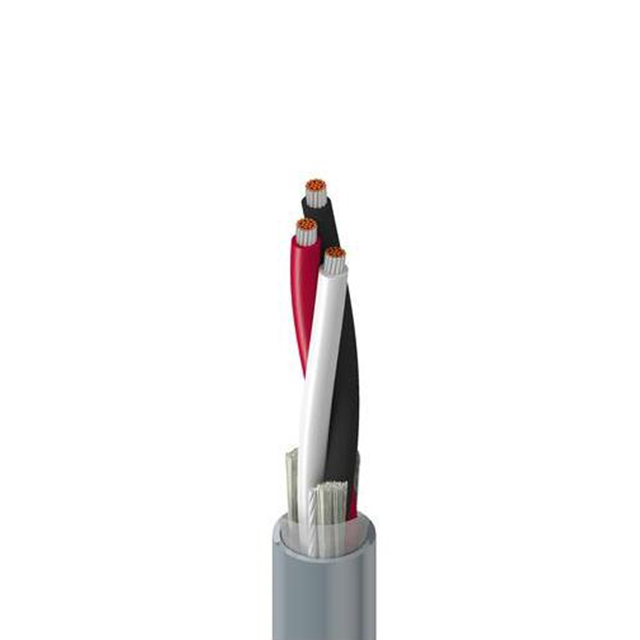

CABLE 3COND 14AWG CHROME
| Part | Number of Conductors | Usage | Wire Gauge | Length | Length | Features | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 3 | Instrumentation | 14.5 AWG | 152.4 m | 500 ft | Rip Cord | Poly-Vinyl Chloride (PVC) | 42 | 30 AWG | 8.64 mm | 0.34 " | Chrome | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | Copper Tinned | -30 ░C | 105 ░C | UL Style 2464 | Multi-Conductor |
Belden Inc. | 3 | Instrumentation | 14.5 AWG | 304.8 m | 1000 ft | Rip Cord | Poly-Vinyl Chloride (PVC) | 42 | 30 AWG | 8.64 mm | 0.34 " | Chrome | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | Copper Tinned | -30 ░C | 105 ░C | UL Style 2464 | Multi-Conductor |
Belden Inc. | 3 | Instrumentation | 14.5 AWG | 762 m | 2500 ft | Rip Cord | Poly-Vinyl Chloride (PVC) | 42 | 30 AWG | 8.64 mm | 0.34 " | Chrome | Poly-Vinyl Chloride (PVC) | 0.042 in | 1.067 mm | Copper Tinned | -30 ░C | 105 ░C | UL Style 2464 | Multi-Conductor |
