CXA10 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K

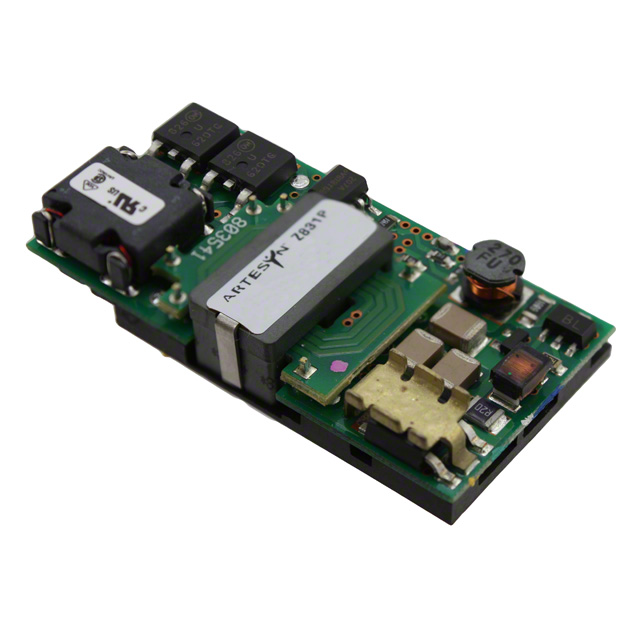

10W, 18-75VIN, DUAL, ±12V@±0.4A, 2.0" X 1.0" X 0.39", 83% EFF OPENFRAME, 3.6MM TH, ROHS 6
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type | Current - Output (Max) | Type | Voltage - Isolation | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Package / Case | Voltage - Input (Min) [Min] | Number of Outputs | Features | Power (Watts) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Input (Max) [Max] | Current - Output (Max) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 2 in | 25.4 mm | 50.8 mm | 1 " | 0.39 " | 10 mm | Through Hole | 410 mA | Isolated Module | 1.5 kV | 83 % | 70 °C | -40 C | ITE (Commercial) | 6-DIP Module | 18 V | 2 | OVP SCP UVLO | 10 W | 12 V | -12 V | 75 V | ||
 ARTESYN / Advanced Energy | 2 in | 25.4 mm | 50.8 mm | 1 " | 0.39 " | 10 mm | Through Hole | 1 A | Isolated Module | 1.5 kV | 81 % | 70 °C | -40 C | ITE (Commercial) | 6-DIP Module | 18 V | 2 | OVP SCP UVLO | 10 W | 5 V | -5 V | 75 V | ||
 ARTESYN / Advanced Energy | 2 in | 25.4 mm | 50.8 mm | 1 " | 0.39 " | 10 mm | Through Hole | 330 mA | Isolated Module | 1.5 kV | 81 % | 70 °C | -40 C | ITE (Commercial) | 6-DIP Module | 18 V | 2 | Remote On/Off | 10 W | 15 V | -15 V | 75 V | 330 mA | CB |
