1462042 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

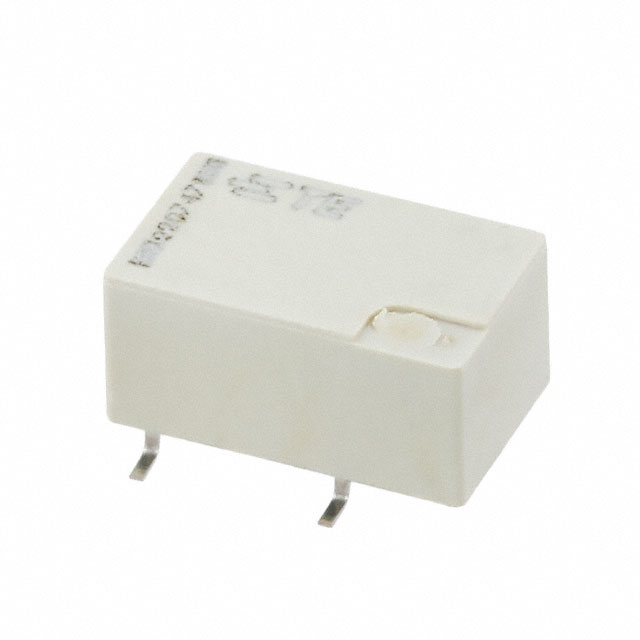

RELAY TELECOM SPDT 2A 24V
| Part | Coil Resistance | Contact Rating (Current) | Termination Style | Mounting Type | Release Time | Seal Rating | Relay Type | Must Operate Voltage | Must Release Voltage | Coil Current | Switching Voltage [Max] | Coil Type | Operate Time | Load - Max Switching | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | |||||||||||||||||||
 TE Connectivity AMP Connectors | 64 Ohms | 2 A | Gull Wing | Surface Mount | 3 ms | Sealed - Hermetically | Telecom | 2.25 VDC | 0.3 VDC | 47 mA | 220 VDC 250 VAC | Non Latching | 3 ms | 440 W 500 VA | Gold (Au) Palladium (Pd) Ruthenium (Ru) | 85 °C | -40 C | SPDT (1 Form C) | |
TE Connectivity AMP Connectors | 2.88 kOhms | 2 A | Gull Wing | Surface Mount | 3 ms | Sealed - Hermetically | Telecom | 18 VDC | 2.4 VDC | 8.3 mA | 220 VDC 250 VAC | Non Latching | 3 ms | 440 W 500 VA | Gold (Au) Palladium (Pd) Ruthenium (Ru) | 85 °C | -40 C | SPDT (1 Form C) | 24 VDC |
