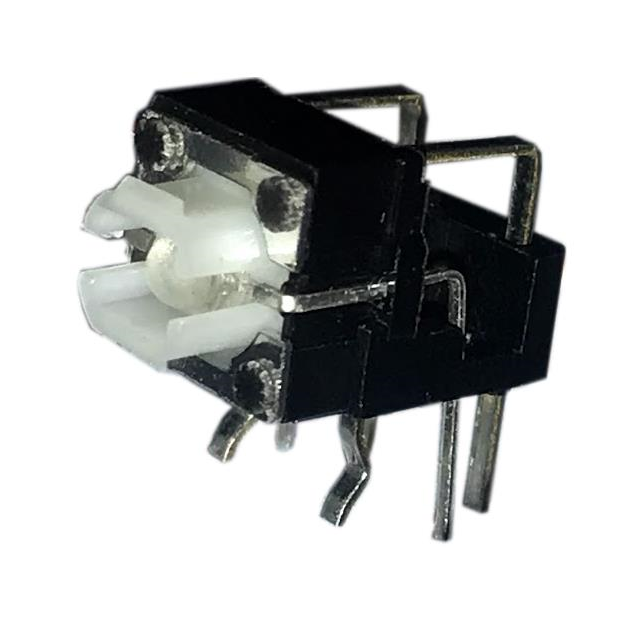

228FDSA Series
Manufacturer: Tusonix a Subsidiary of CTS Electronic Components
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mounting Type | Illumination Type, Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Switch Function | Outline [y] | Outline [x] | Circuit | Actuator Type | Actuator Length, Right Angle | Illumination Voltage (Nominal) | Switch Travel | Contact Rating @ Voltage | Actuator Orientation | Illumination | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Tusonix a Subsidiary of CTS Electronic Components | Through Hole Right Angle | Green LED | -20 C | 70 °C | PC Pin | Off-Mom | 5.85 mm | 7.4 mm | SPST-NO | Plunger for Cap | 5.95 mm | 3 VDC | 0.25 mm | 0.05 A 12 VDC | Side Actuated | Illuminated | 100000 Cycles |
Tusonix a Subsidiary of CTS Electronic Components | Through Hole Right Angle | -20 C | 70 °C | PC Pin | Off-Mom | 5.85 mm | 7.4 mm | SPST-NO | Plunger for Cap | 5.95 mm | 2 VDC 3.2 VDC | 0.25 mm | 0.05 A 12 VDC | Side Actuated | Illuminated | 100000 Cycles | |
 Tusonix a Subsidiary of CTS Electronic Components | Through Hole Right Angle | Green LED Yellow | -20 C | 70 °C | PC Pin | Off-Mom | 5.85 mm | 7.4 mm | SPST-NO | Plunger for Cap | 5.95 mm | 0.25 mm | 0.05 A 12 VDC | Side Actuated | Illuminated | 100000 Cycles |
