SSV66-SM16 Series

Catalog

SENSOR LEVEL LIQUID SWITCH

Part	Mounting Type	Output Type	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Material - Housing & Prism	Output Configuration [custom]	Type	Current	Operating Temperature	Switch Actuation Level	Switch Actuation Level	Switch Actuation Level

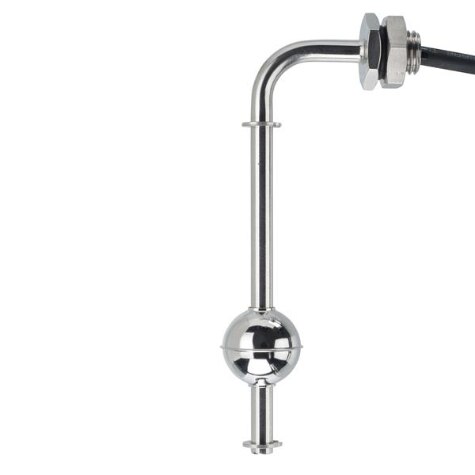

Sensata-Crydom SSV66A35B210SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C	35 mm 210 mm	1.378 in 8.268 in
Sensata-Crydom SSV66A35B135SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C	1.378 in 5.349 in	35 mm 135 mm
Sensata-Crydom SSV66A35B160SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C	1.378 in 6.299 in	35 mm 160 mm

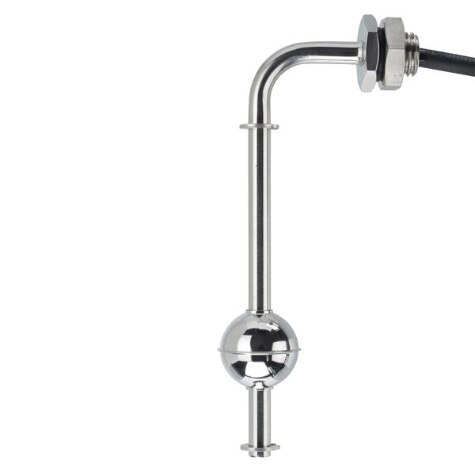

Sensata-Crydom SSV66A35B110SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C		1.378 in 3.937 in 35 mm 110 mm
Sensata-Crydom SSV66A35B185SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C	1.378 in 7.283 in	35 mm 185 mm

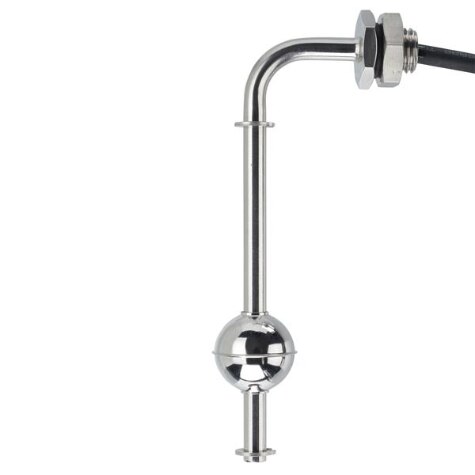

Sensata-Crydom SSV66A35B235SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C	1.378 in 9.252 in	35 mm	235 mm

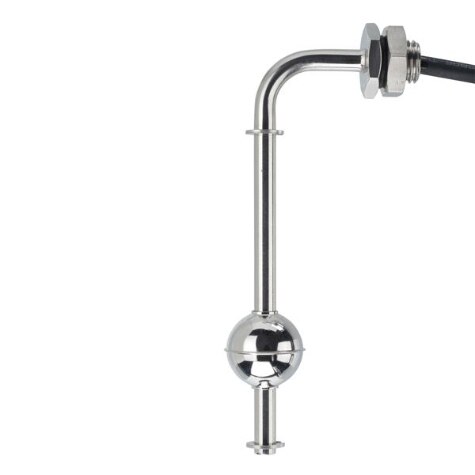

Sensata-Crydom SSV66A35B85SM16	M16 Thread Panel Mount	Switch (2) (Single Float)	0.75	300 VDC 300 VAC	316 Stainless Steel	SPST-NC SPST-NO	Liquid	500 mA	120 °C		1.378 in 3.346 in 35 mm 85 mm
