OAB908AN Series

Catalog

AC BLOWER BALL BEARING 220V 65W/45W 50HZ/60HZ 3100RPM/2400RPM 100CFM/75CFM 68DB/55DB FLANGE MOUNT

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Air Flow [Min]	Air Flow [Max]	Air Flow [Min]	Air Flow [Max]	Static Pressure [Max]	Static Pressure [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Noise [Min]	Noise [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Voltage - Rated	Fan Type	Features	RPM [Max]	RPM [Min]	Power (Watts)	Termination	Width [x]	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Static Pressure	Static Pressure	Noise	RPM
ORION FANS OAB908AN-22-1/2	Plastic	40000 Hrs	Aluminum	2.1 m³/min	100 CFM	75 CFM	2.8 m³/min	1.8 in H2O 448.4 Pa	1.4 in H2O 348.7 Pa	-4 °F	167 °F	Ball	55 dB(A)	68 dB	189.8 mm	183 mm	Rectangular/Rounded	230 VAC	Blower	Dual Speed Thermal Overload Protector (TOP)	3100 RPM	2400 RPM	65 W 80 W	3 Wire Leads	70 mm
ORION FANS OAB908AN-22-3	Plastic	40000 Hrs	Aluminum							-4 °F	167 °F	Ball			189.8 mm	183 mm	Rectangular/Rounded	230 VAC	Blower	Capacitor Thermal Overload Protector (TOP)			60 W	3 Wire Leads	70 mm	1.4 m³/min	50 CFM	260 VAC	100 VAC	50 CFM	274 Pa	1.1 in H2O	40 dB(A)	1000 RPM

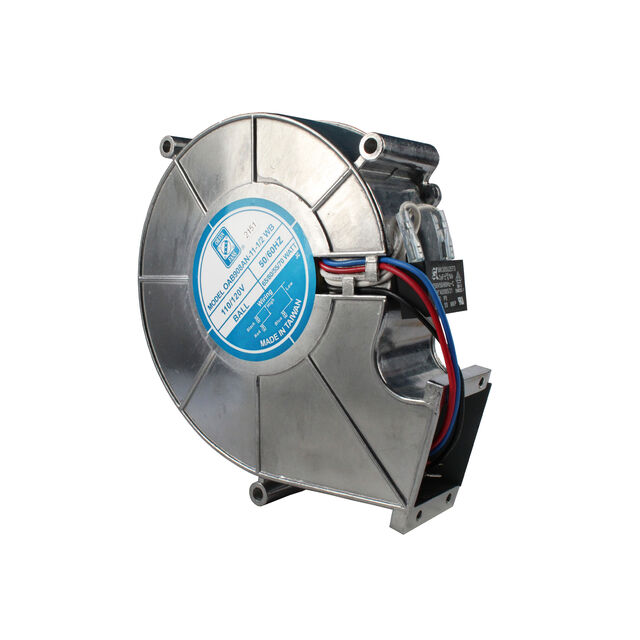

ORION FANS OAB908AN-11-3	Plastic	40000 Hrs	Aluminum							-4 °F	167 °F	Ball			189.8 mm	183 mm	Rectangular/Rounded	115 VAC	Blower	Capacitor Thermal Overload Protector (TOP)			60 W	3 Wire Leads	70 mm	1.4 m³/min		130 VAC	60 VAC	50 CFM	274 Pa	1.1 in H2O	40 dB(A)	1000 RPM

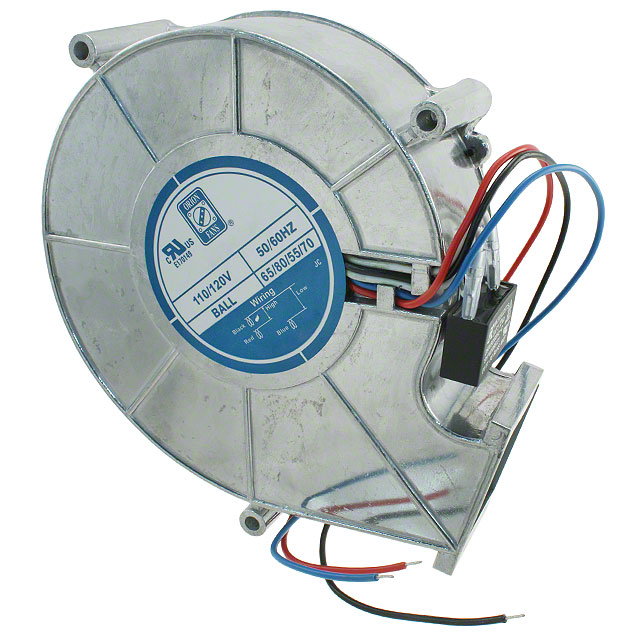

ORION FANS OAB908AN-11-1/2	Plastic	40000 Hrs	Aluminum	2.1 m³/min	100 CFM	75 CFM	2.8 m³/min	1.8 in H2O 448.4 Pa	1.4 in H2O 348.7 Pa	-4 °F	167 °F	Ball	55 dB(A)	68 dB	189.8 mm	183 mm	Rectangular/Rounded	115 VAC	Blower	Dual Speed Thermal Overload Protector (TOP)	3100 RPM	2400 RPM	65 W 80 W	3 Wire Leads	70 mm			125 VAC	100 VAC
