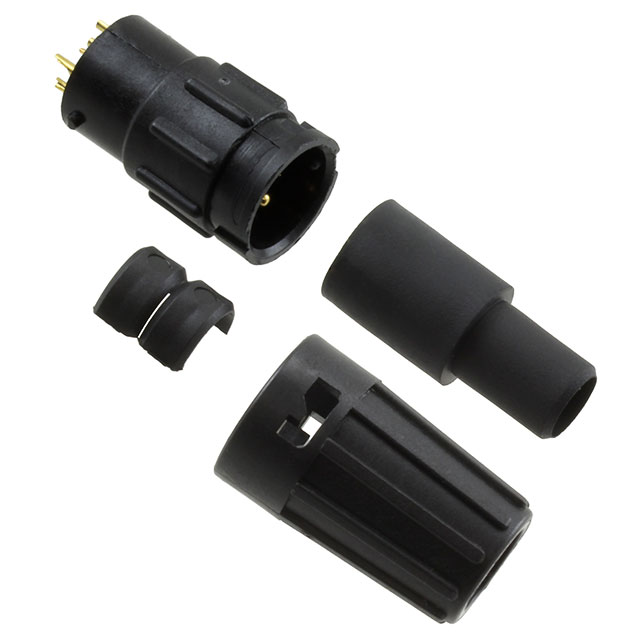

W8A82-8 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
CONN RCPT MALE 8P GOLD SLDR CUP
| Part | Color | Fastening Type | Insert Material | Current Rating (Amps) | Primary Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Connector Type | Applications | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Contact Finish - Mating | Orientation | Backshell Material, Plating | Voltage Rating | Number of Positions [custom] | Number of Positions [custom] | Ingress Protection | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Black | Bayonet Lock | Thermoplastic | Varies by Wire Gauge | Plastic | Backshell UV Resistant | 85 °C | -40 C | Unshielded | Plug Male Pins | Automotive Communication Systems Instrumentation | 6.6 mm | 0.26 " | 7.24 mm | 0.285 in | Gold | Keyed | Thermoplastic | 250 V | 2 | 6 | IP67/IP69K | Free Hanging (In-Line) | Copper Alloy |
 SWITCHCRAFT/CONXALL | Black | Bayonet Lock | Thermoplastic | Varies by Wire Gauge | Plastic | Backshell UV Resistant | 85 °C | -40 C | Unshielded | Plug Female Sockets | Automotive Communication Systems Instrumentation | 6.6 mm | 0.26 " | 7.24 mm | 0.285 in | Gold | Keyed | Thermoplastic | 250 V | 2 | 6 | IP67/IP69K | Free Hanging (In-Line) | Copper Alloy |
