IKWH75 Series
Manufacturer: INFINEON
Beta
⌘K

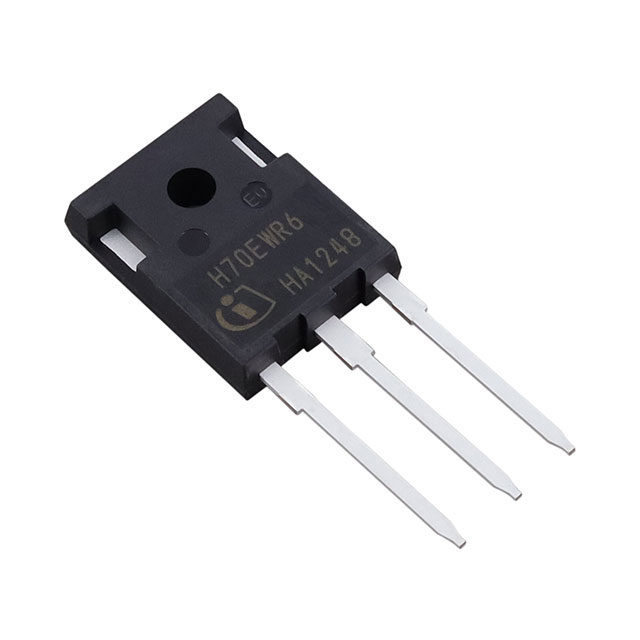

HARD-SWITCHING 650 V, 75 A TRENCHSTOP™ IGBT7 H7 DISCRETE WITH ANTI-PARALLEL DIODE IN TO-247-3 HIGH CREEPAGE CLEARANCE PACKAGE
| Part | Reverse Recovery Time (trr) | Supplier Device Package | Power - Max [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector (Ic) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Td (on/off) @ 25°C | Package / Case | IGBT Type | Test Condition | Vce(on) (Max) @ Vge, Ic [Max] | Current - Collector Pulsed (Icm) | Switching Energy | Gate Charge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 89 ns | PG-TO247-3-32 | 341 W | 650 V | 80 A | 175 °C | -40 °C | Through Hole | 25 ns 45 ns | TO-247-3 | Trench Field Stop | 10 Ohm 15 V 75 A 400 V | 1.65 V | 300 A | 1.4 mJ 2.42 mJ | 150 nC |
