SJ1-35 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN JACK STEREO 3.5MM SMD R/A

Part	Features	Signal Lines	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Gender	Termination	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Actual Diameter [diameter]	Actual Diameter [diameter]	Housing Material	Mating Length/Depth	Mating Length/Depth	Internal Switch(s)	Contact Material	Contact Material - Plating	Body Color	Body Material	Voltage - Rated	Current Rating (Amps)	Thread Size	Includes	Panel Hole Size	Panel Hole Size
Same Sky (Formerly CUI Devices) SJ1-3513-SMT-TR	Board Guide	Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	3	3	Right Angle Surface Mount	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm
Same Sky (Formerly CUI Devices) SJ1-3534NS	Board Lock	Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	4	3	Right Angle Through Hole	85 °C	-25 °C	Shielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in	Single Switch	Brass	Tin	Silver	Brass	16 V	0.3 A

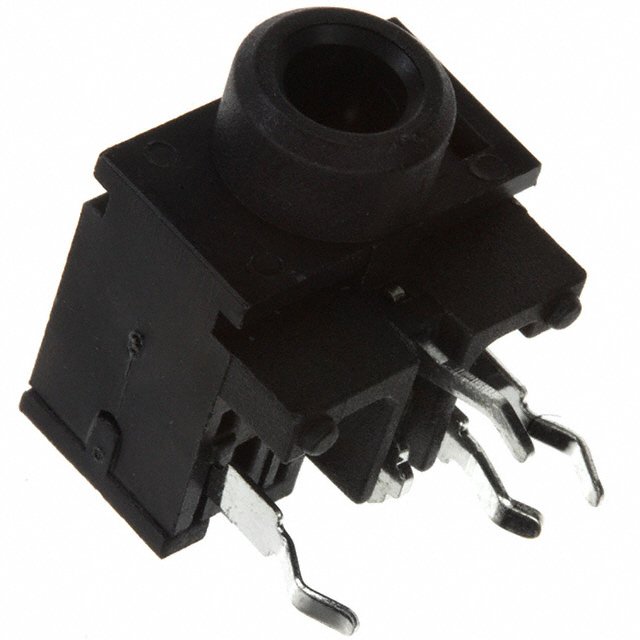

Same Sky (Formerly CUI Devices) SJ1-3554NG		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Kinked Pin	Phone Jack	4	3	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in	Single Switch	Brass Copper Alloy	Tin	Black		12 VDC	1 A
Same Sky (Formerly CUI Devices) SJ1-3515	Mounting Hardware Thread Lock	Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder Eyelet(s)	Phone Jack	5	3	Panel Mount Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in	Two Switches	Brass	Tin	Black Silver	Brass	12 VDC	1 A	M6	1 Connector 1 Nut	5.99 mm	0.236 "
Same Sky (Formerly CUI Devices) SJ1-3515N		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder Eyelet(s)	Phone Jack	5	3	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in	Two Switches	Brass	Tin	Black Silver	Brass	12 VDC	1 A

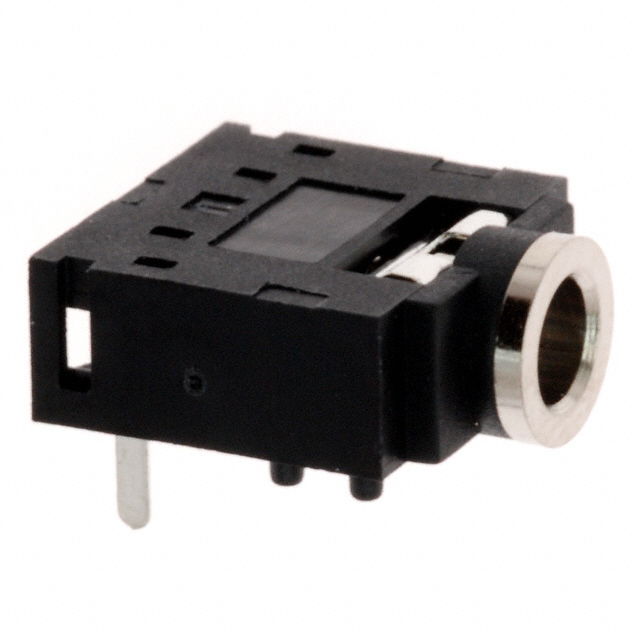

Same Sky (Formerly CUI Devices) SJ1-3523N		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	3	3	Right Angle Through Hole			Unshielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in				Black Silver	Brass	12 VDC	1 A
Same Sky (Formerly CUI Devices) SJ1-3525NG-GR		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	5	3	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in	Two Switches	Brass Copper Alloy Stainless Steel	Silver	Green		12 VDC	1 A
Same Sky (Formerly CUI Devices) SJ1-3534N		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	4	3	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm				Single Switch
Same Sky (Formerly CUI Devices) SJ1-3524NG		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	4	3	Right Angle Through Hole	85 °C	-25 °C	Unshielded	0.142 in	3.6 mm				Single Switch

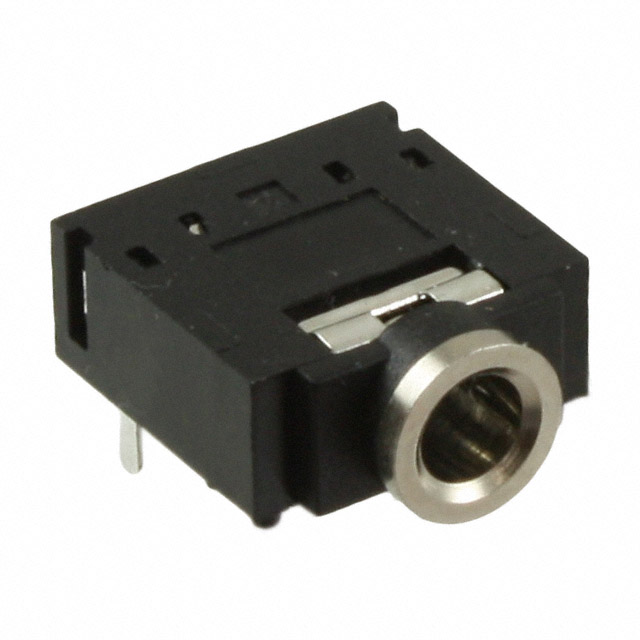

Same Sky (Formerly CUI Devices) SJ1-3525N		Stereo (3 Conductor TRS)	0.125 in	3.5 mm	0.141 in	Female	Solder	Phone Jack	5	3	Right Angle Through Hole			Unshielded	0.142 in	3.6 mm	Polybutylene Terephthalate (PBT)	14 mm	0.551 in	Two Switches		Tin	Black Silver	Brass	12 VDC	1 A
