T Y Series
Manufacturer: Triad Magnetics
Beta
⌘K

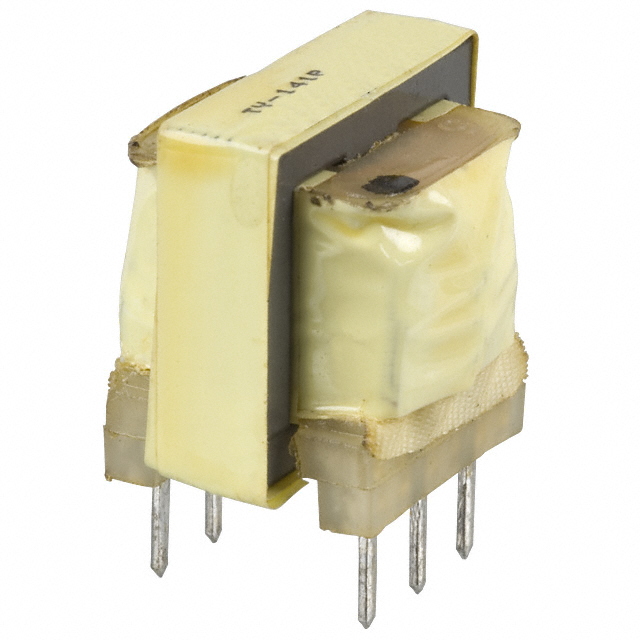

AUDIO TRANSFORMERS / SIGNAL TRANSFORMERS AUDIO XFMR 10KCT:10KCT 4MADC 100MW PCB MOUNT/TY-141P
| Part | Insertion Loss | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Impedance - Primary (Ohms) | Operating Temperature [Max] | Operating Temperature [Min] | Frequency Range [Max] | Frequency Range [Min] | Mounting Type | Return Loss | Voltage - Isolation | Transformer Type | Turns Ratio - Primary:Secondary | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary [custom] | Termination Style | DC Resistance (DCR) - Secondary | Frequency Response |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Triad Magnetics | 1.5 dB | 0.812 in | 17.78 mm | 0.7 in | 20.62 mm | 10kCT | 85 °C | -20 ░C | 15 kHz | 200 Hz | Through Hole | 26 dB | 1.5 kV | Data/Voice Coupling | 1:1 | 10kCT | 820 Ohm | PC Pin | 1.07 kOhm | 2 dB |
